Description
Key Specifications:
-
Display Technology: 3LCD (RGB liquid crystal shutter)
-
Resolution: WXGA (1280 × 800), aspect ratio 16:10
-
Brightness (White / Colour): ~ 4,000 lumens (normal); ~ 2,600 lumens (eco mode)
-
Contrast Ratio: ~ 16,000 : 1
Optics & Projection
-
Lamp / Light Source: UHE lamp, 210 W
-
Lamp Life: ~ 6,000 hours (normal); ~ 12,000 hours (eco)
-
LCD Panel Size: ~ 0.59″ (C2 Fine)
-
Zoom: Manual, 1.0‑1.2×
-
Focus: Manual
-
Throw Ratio: ~ 1.30‑1.56:1 (wide to tele)
-
Focal Length: ~ 16.90 mm (wide) to ~ 20.28 mm (tele)
-
Aperture (F‑number): ~ f/1.49‑f/1.72
-
Keystone Correction: Vertical ±30° (auto vertical), Horizontal ±30° (manual)
-
Additional Image Adjustements: Quick Corner
Connectivity & Features
-

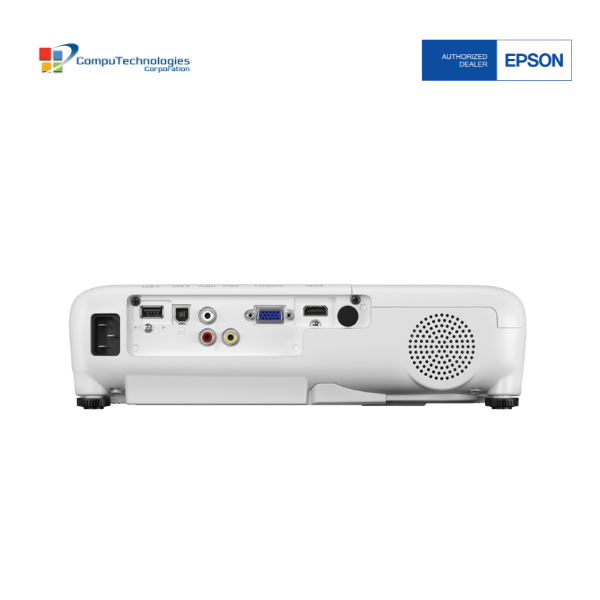

Inputs / Ports:
-
HDMI × 1
-
VGA (D‑Sub 15) × 1
-
Composite video (RCA) × 1
-
USB Type‑A × 1 (for wireless LAN, firmware update, etc.)
-
USB Type‑B × 1 (firmware / OSD settings)
-
2× RCA audio input (left and right)
-
Optional wireless LAN (module)
-
-
Screen Size Capability: ~ 33″ up to ~ 320″ diagonal, depending on throw distance
-
Geometric Adjustment: Keystone ±30° both axes; auto vertical keystone; manual horizontal
-
Other Features: Instant off cool‑down, direct power on/off
