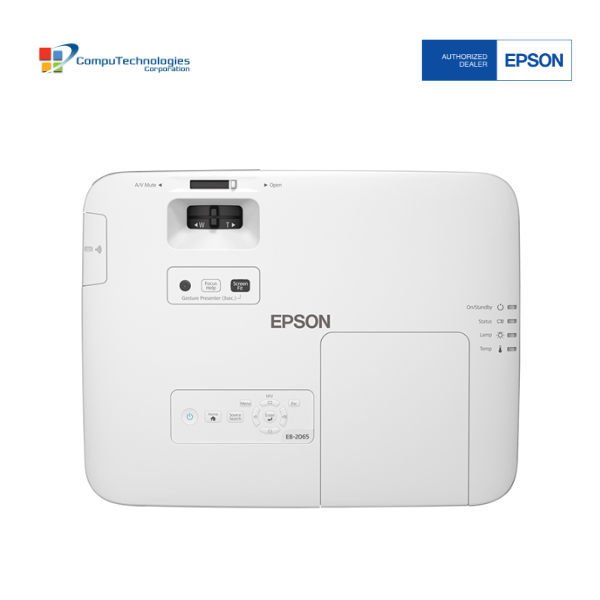

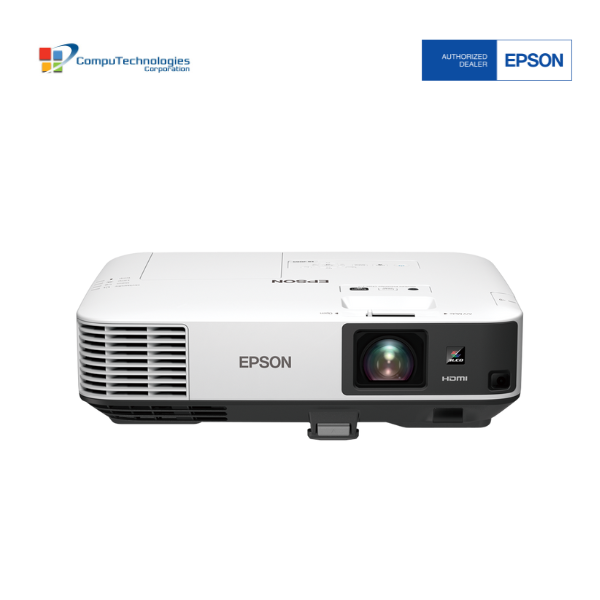

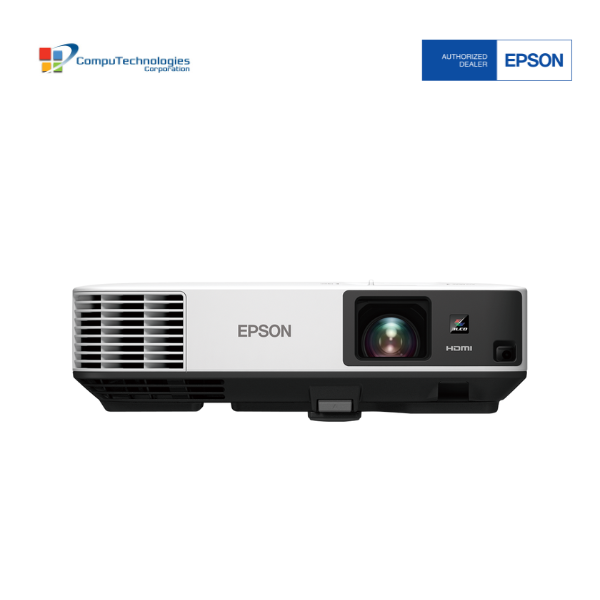

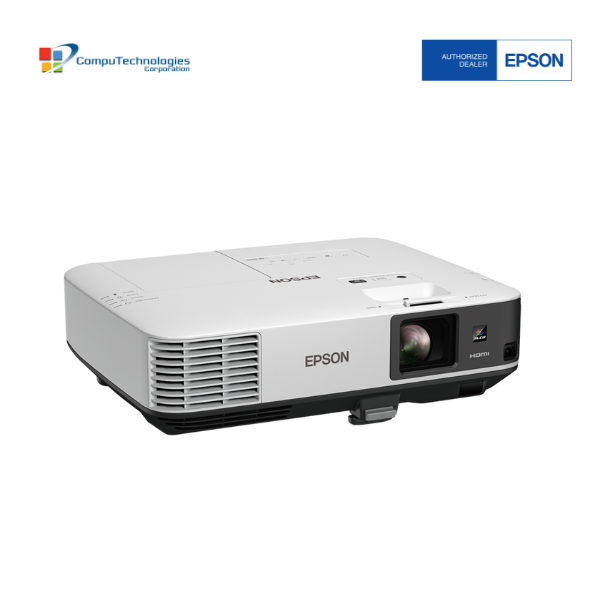

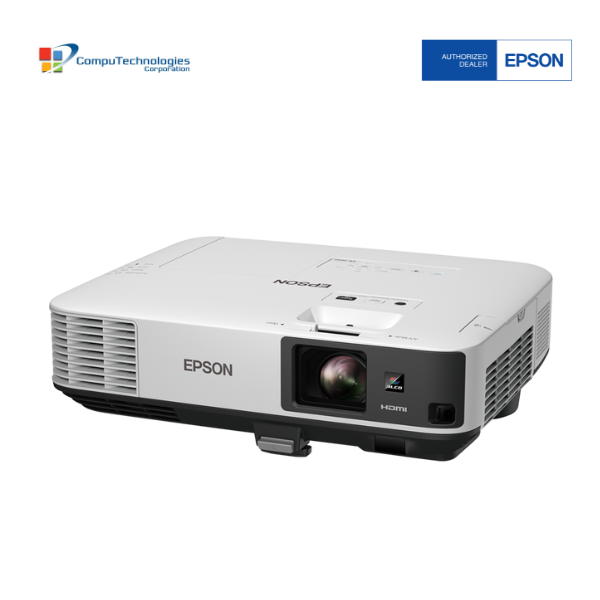

Epson EB-2065 XGA 3LCD Projector

Description

Key Specificatios:

• Display Technology: 3LCD, RGB liquid crystal shutter

• Native Resolution: XGA (1024 × 768), Aspect Ratio 4:3

• Brightness (White & Colour): ~ 5,500 lumens (Normal) / ~ 3,800 lumens (Eco)

• Contrast Ratio: ~ 15,000 : 1

• Lamp Type: 300 W UHE lamp

• Lamp Life: ~ 5,000 hours (Normal); ~ 10,000 hours (Eco)

Optics & Image

• Throw Ratio: ~ 1.38 – 2.24 :1 (wide to tele)

• Zoom: Manual, 1.0 – 1.6× optical zoom

• Focus: Manual

• Lens F‑number (Aperture): ~ f/1.51 ‑ f/1.99

• Focal Length: ~ 18.2 mm (wide) to ~ 29.2 mm (tele)

• Keystone Correction: Vertical ±30°, Horizontal ±30° (auto vertical + auto horizontal)

• Screen / Image Size: ~ 30″ to 300″ diagonal

Connectivity & Features

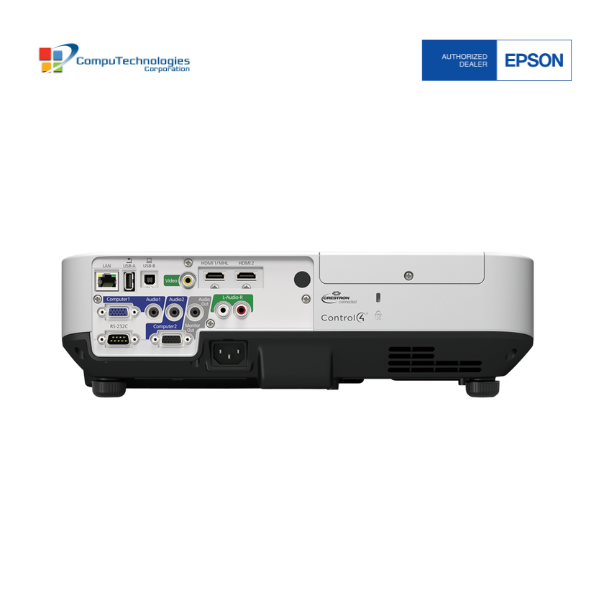

• Inputs/Outputs:
  • 2× HDMI (one supports MHL)
  • 2× VGA (D‑Sub 15‑pin) inputs, plus 1 VGA output
  • Composite video input
  • USB Type‑A & USB Type‑B ports (for firmware updates, USB display, etc.)
  • Audio inputs & output: stereo mini‑jack + RCA
  • Network: RJ‑45 (LAN), optional wireless LAN unit
  • Control: RS‑232C

• Audio: Built‑in 16 W monaural speaker

• Features:
  • Auto power on
  • Direct power off
  • Quick Corner correction
  • Split‑screen (multi‑PC projection)
  • Gesture Presenter (slide control by hand gesture)

Physical, Power & Environmental

• Dimensions (W × D × H, excluding feet): ~ 377 × 291 × 101 mm

• Weight: ~ 4.4 kg

• Noise Level: Normal ~ 39 dB(A); Eco ~ 29 dB(A)

• Power Supply: ~ 100‑240 V AC (depending on region)

• Power Consumption: ~ 425 W (Normal), ~ 323 W (Eco), ~ 0.5 W standby

• Operating Temperature: ~ 5‑40 °C (lower altitudes); ~ 5‑35 °C (high altitude mode)

• Operating Altitude: up to ~ 3,048 meters
