Epson EB-1785W Wireless WXGA 3LCD Projector

Description

Key Specifications:

• Projection technology: 3LCD (RGB liquid crystal shutter)

• Native resolution: WXGA (1280 × 800), aspect ratio 16:10

• White light output (normal): ~ 3,200 lumens

• Colour light output: ~ 3,200 lm (normal) / ~ 1,900 lm (eco)

• Contrast ratio (with auto iris): ~ 10,000 : 1

• Lamp: ~ 214 W UHE lamp

• Lamp life: ~ 4,000 hours (normal), ~ 7,000 hours (eco)

Optical & Projection

• LCD panel size: ~0.59‑inch with C2 Fine

• Throw ratio (wide‑to‑tele): ~1.04 ‑ 1.26 :1

• Zoom: Manual, ~1.0 ‑ 1.2×

• Keystone correction: Auto vertical ± 30°; Auto horizontal ± 20°

• Projection size range: ~30″ to 300″ diagonal

• Projection distance for a 60″ screen: ~1.35 ‑ 1.62 m

Connectivity & Features

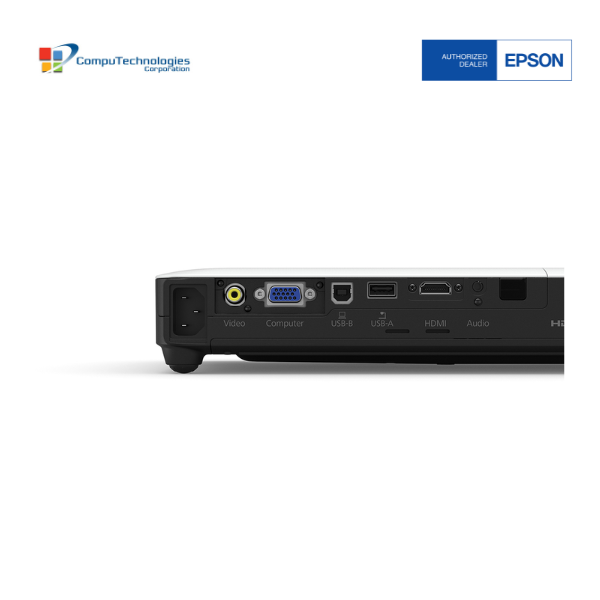

• Inputs/ports:
    • 1× HDMI (with MHL)
    • 1× VGA (D‑Sub 15)
    • 1× Composite (RCA)
    • 1× Stereo mini‑jack audio in
    • USB Type‑A (for USB memory, document camera, firmware)
    • USB Type‑B (for USB display, mouse/keyboard, control)

• Wireless & networking: Built‑in Wi‑Fi (Wireless LAN), Miracast, NFC, screen mirroring (iProjection app)

• Special features: Gesture Presenter, Quick Corner, Split Screen, Auto source search, Instant on/off, Direct power on/off

Physical / Power / Environmental

• Dimensions (without feet): ~ 292 mm × 44 mm × 213 mm

• Weight: ~ 1.8 kg

• Fan/Noise: ~39 dB (normal) / ~30 dB (eco)

• Operating temperature: 5 °C to 40 °C (up to ~2,300 m altitude); 5 °C to 35 °C for higher altitude

• Operating altitude: up to ~3,000 m

• Power consumption: ~ 295 W in normal peak mode; ~ 208 W in eco peak mode; standby ~ 0.34 W

• Startup time: ~7.2 seconds; warm‑up ~ 30 seconds

• Cool‑down/Shutdown: Instant off
