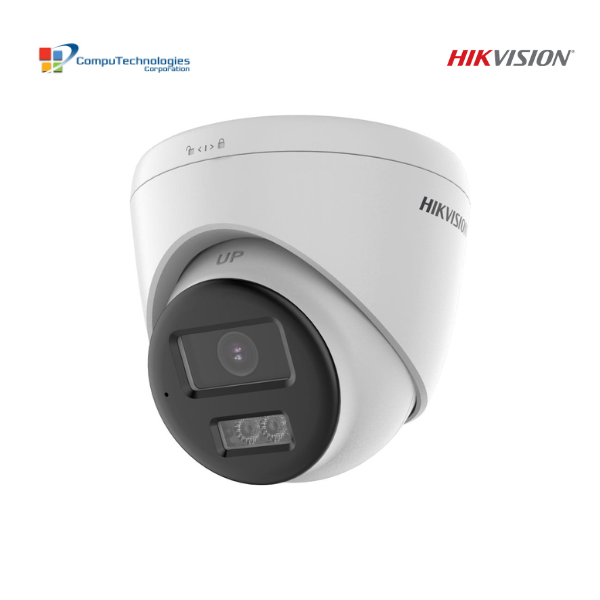

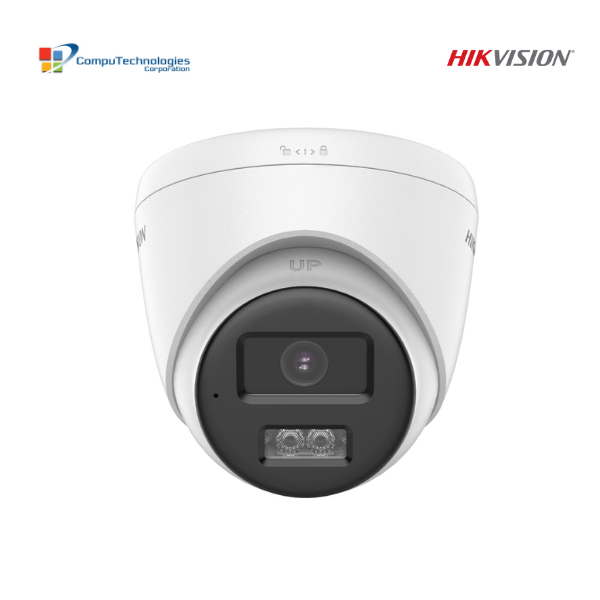

DS-2CE78D0T-LTS

Description

Camera

• Resolution: 2MP Full HD (1920 × 1080)

• Image Sensor: 2MP CMOS

• Minimum Illumination: 0.01 Lux @ F1.6, AGC ON

• Day/Night: ICR

• Signal System: PAL / NTSC

• Shutter: PAL 1/12.5–1/50,000s; NTSC 1/15–1/50,000s

• Pan: 0°–360°

• Tilt: 0°–75°

• Rotation: 0°–360°

Lens

• Lens Type: Fixed focal

• Options: 2.8mm / 3.6mm

• 2.8mm FOV: 105° H / 59° V / 127° D

• 3.6mm FOV: 87° H / 46° V / 105° D

• Lens Mount: M12

Night Vision & Lighting

• Smart-Hybrid Light: Yes

• IR Distance: Up to 40m

• White Light Distance: Up to 40m

• Smart IR: Yes


• Frame Rate: 1080p @ 25/30fps

• WDR: Digital WDR

• BLC: Yes

• HLC: Yes

• HLS: Yes

• Noise Reduction: 2D DNR

• White Balance: Auto / Manual

• Day/Night: Auto / Color / B&W

• Image Settings: Brightness, Sharpness, Anti-Banding, Smart IR

Audio

• Built-in Microphone: Yes

• Microphone Range: Up to 5m

• Built-in Speaker: Yes

• Speaker Power: 2W

• Speaker Range: Up to 5m

• Two-Way Audio: Yes

• Audio over Coax: Yes

• Audio Processing: Echo Cancellation, Noise Reduction, Automatic Gain Control

Interface

• Video Output: 1 × HD Analog Output

• Communication: HIKVISION-C

General

• Power: 12V DC ±25%

• Maximum Power: 7.5W

• Material: Metal + Plastic

• Dimensions: Ø110 × 102.7mm

• Weight: Approx. 365g

• Operating Temperature: -40°C to 60°C

• Humidity: ≤90%, non-condensing

• Protection: IP67

• Language: English

Available Models

• DS-2CE78D0T-LTS (2.8mm)

• DS-2CE78D0T-LTS (3.6mm)
