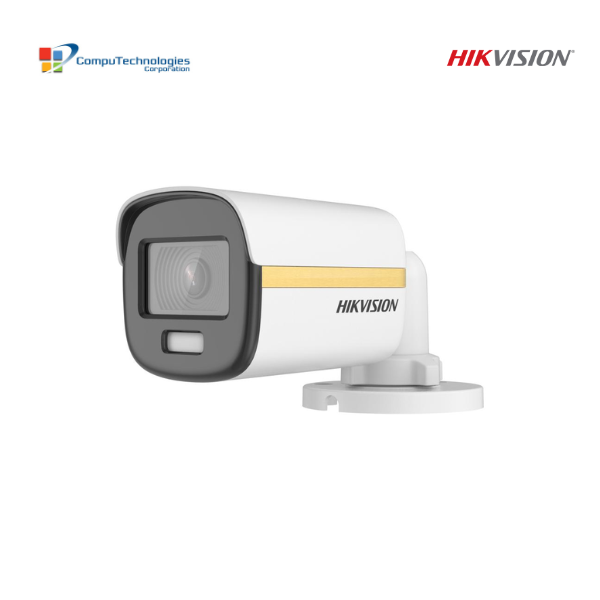

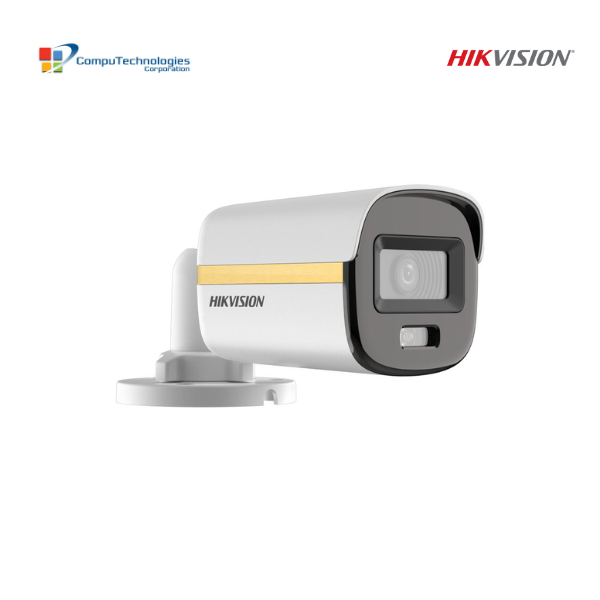

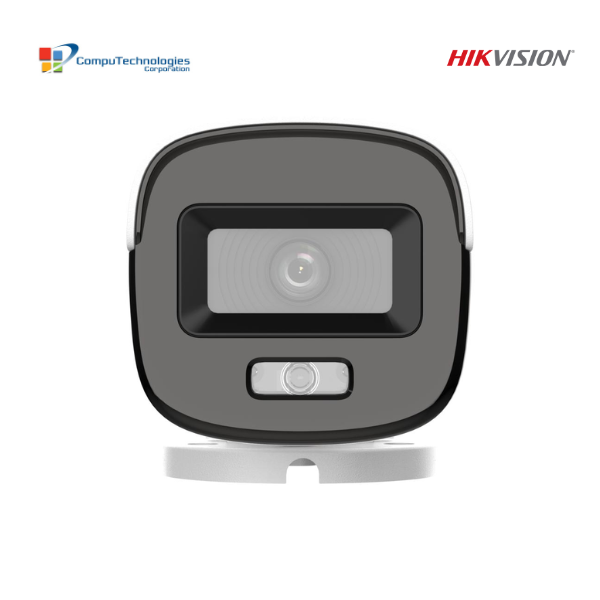

DS-2CE10UF3T-E

Description

Camera

• Image Sensor: 8 MP CMOS
• Maximum Resolution: 3840 × 2160
• Signal System: PAL/NTSC
• Minimum Illumination: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with white light
• Day & Night: 24/7 Color Imaging
• Shutter Speed: PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s
• Adjustment: Pan 0°–360°, Tilt 0°–90°, Rotation 0°–360°

Lens

• Lens Type: 2.8 mm / 3.6 mm Fixed Focal Lens
• Lens Mount: M16
• Field of View:
  • 2.8 mm: H 110°, V 59°, D 131°
  • 3.6 mm: H 93°, V 48°, D 113°

Illumination

• Supplement Light: White Light
• White Light Range: Up to 20 m

Image Features

• Frame Rate: 8 MP @ 12.5/15 fps; 3K @ 20 fps; 1080p @ 25/30 fps
• WDR: ≥130 dB
• Day/Night Mode: Color
• Noise Reduction: 3D DNR / 2D DNR
• Image Enhancement: WDR, BLC, HLC, Global, HLS
• White Balance: Auto / Manual
• Privacy Mask: 4 programmable areas
• Image Settings: Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light, AGC

Interface & Events

• Video Output: 1 × HD Analog Output
• Alarm: Solid White Light Alarm
• Motion Detection: 4 programmable areas

General

• Power Supply: 12 VDC ±25% / PoC, Max. 3.6 W
• Material: Metal
• Dimensions: 161.1 × 70 × 70 mm
• Weight: Approx. 443.5 g
• Operating Temperature: -40°C to 60°C
• Operating Humidity: ≤90%, non-condensing
• Communication: HIKVISION-C
• Language: English

Protection

• Protection Rating: IP67 – Water and Dust Resistant
