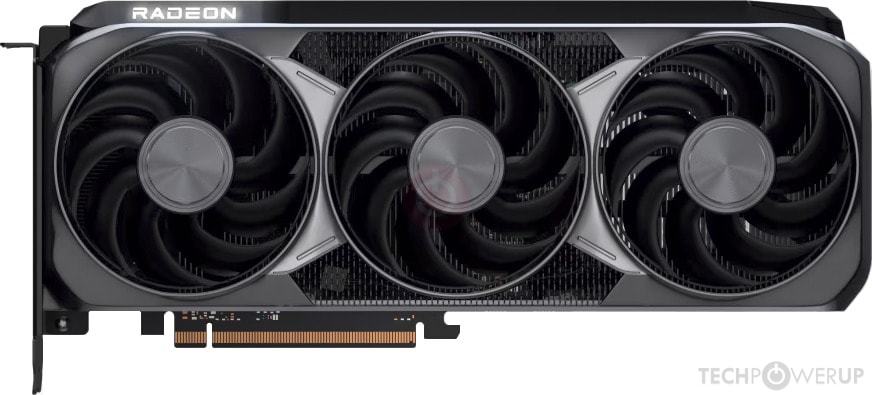

Radeon™ RX 9070 XT

Description

• General

  NameAMD Radeon™ RX 9070 XT

  FamilyRadeon RX

  SeriesRadeon RX 9000 Series

  Board TypeDesktop

  OS SupportWindows 10 – 64-Bit Edition , Windows 11 – 64-Bit Edition , Linux x86 64-Bit

  Additional Power Connector2x8-Pin

• GPU

  Compute Units64

  Boost Frequency Up to 2970 MHz

  Game Frequency 2400 MHz

  Ray Accelerators64

  AI Accelerators128

  Peak Pixel Fill-RateUp to 380.2 GP/s

  Peak Single Precision (FP32 Vector) Performance48.7 TFLOPs

  Peak Half Precision (FP16 Vector) Performance97.3 TFLOPs

  Peak Half Precision (FP16 Matrix) Performance195 TFLOPs

  Peak Half Precision (FP16 Matrix) Performance with Structured Sparsity389 TFLOPs

  Peak 8-bit Precision (FP8 Matrix) Performance (E5M2, E4M3)389 TFLOPs

  Peak 8-bit Precision (FP8 Matrix) Performance with Structured Sparsity (E5M2, E4M3)779 TFLOPs

  Peak 8-bit Precision (INT8 Matrix) Performance389 TOPs

  Peak 8-bit Precision (INT8 Matrix) Performance with Structured Sparsity779 TOPs

  Peak 4-bit Precision (INT4 Matrix) Performance779 TOPs

  Peak 4-bit Precision (INT4 Matrix) Performance with Structured Sparsity1557 TOPs

  ROPs128

  Stream Processors4096

  Transistor Count53.9 B

• Requirements

  Typical Board Power (Desktop)304W

  Minimum PSU Recommendation750W

• GPU Memory

  AMD Infinity Cache Technology64 MB

  Memory SpeedUp to 20 Gbps

  Max Memory Size16 GB

  Memory TypeGDDR6

  Memory Interface256-bit

  Memory BandwidthUp to 640 GB/s

• Supported Rendering Format

  HDMI™ 4K SupportYes

  4K H264 DecodeYes

  4K H264 EncodeYes

  H265/HEVC DecodeYes

  H265/HEVC EncodeYes

  AV1 DecodeYes

  AV1 EncodeYes

• Connectivity

  DisplayPort™2.1a

  HDMI™2.1b
