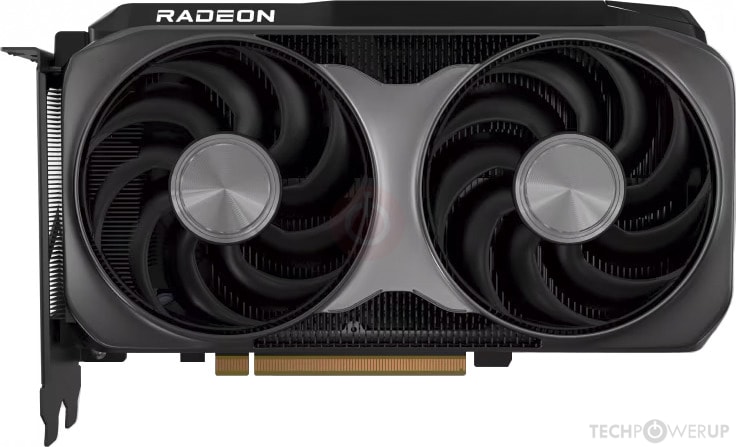

Radeon™ RX 9060 XT (16GB)

Description

• General

  NameAMD Radeon™ RX 9060 XT

  FamilyRadeon RX

  SeriesRadeon RX 9000 Series

  Board TypeDesktop

  OS SupportWindows 10 – 64-Bit Edition , Windows 11 – 64-Bit Edition , Linux x86 64-Bit

  Additional Power Connector1x8-Pin

• GPU

  Compute Units32

  Boost Frequency Up to 3130 MHz

  Game Frequency 2530 MHz

  Ray Accelerators32

  AI Accelerators64

  Peak Pixel Fill-RateUp to 200.3 GP/s

  Peak Single Precision (FP32 Vector) Performance25.6 TFLOPs

  Peak Half Precision (FP16 Vector) Performance51.3 TFLOPs

  Peak Half Precision (FP16 Matrix) Performance103 TFLOPs

  Peak Half Precision (FP16 Matrix) Performance with Structured Sparsity205 TFLOPs

  Peak 8-bit Precision (FP8 Matrix) Performance (E5M2, E4M3)205 TFLOPs

  Peak 8-bit Precision (FP8 Matrix) Performance with Structured Sparsity (E5M2, E4M3)410 TFLOPs

  Peak 8-bit Precision (INT8 Matrix) Performance205 TOPs

  Peak 8-bit Precision (INT8 Matrix) Performance with Structured Sparsity410 TOPs

  Peak 4-bit Precision (INT4 Matrix) Performance410 TOPs

  Peak 4-bit Precision (INT4 Matrix) Performance with Structured Sparsity821 TOPs

  ROPs64

  Stream Processors2048

  Texture Units128

  Transistor Count29.7 B

• Requirements

  Typical Board Power (Desktop)160W

  Minimum PSU Recommendation450W

• GPU Memory

  AMD Infinity Cache Technology32 MB

  Memory SpeedUp to 20 Gbps

  Max Memory Size16 GB

  Memory TypeGDDR6

  Memory Interface128-bit

  Memory BandwidthUp to 320 GB/s

• Supported Rendering Format

  HDMI™ 4K SupportYes

  4K H264 DecodeYes

  4K H264 EncodeYes

  H265/HEVC DecodeYes

  H265/HEVC EncodeYes

  AV1 DecodeYes

  AV1 EncodeYes

• Connectivity

  DisplayPort™2.1a

  HDMI™2.1b
