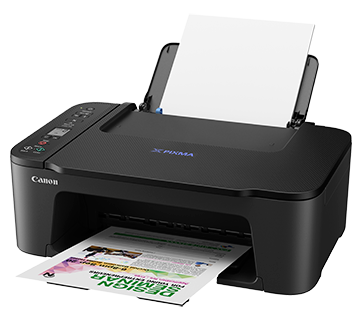

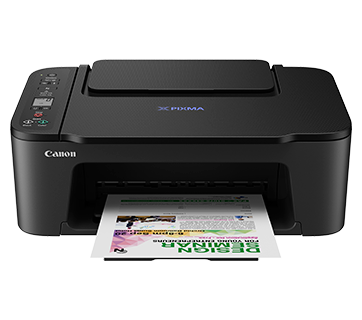

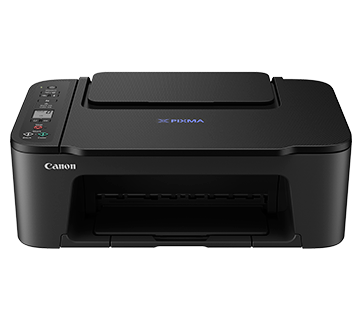

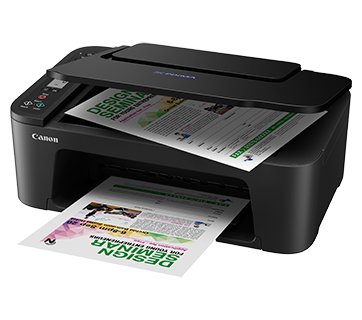

PIXMA E3470

Description

Printing

• Print Head / Ink:

  • Number of Nozzles: 1,280

  • Ink Cartridges: PG-47 (Black), CL-57S (Colour); Optional: CL-57

  • Print Head Alignment: Manual

  • Ink End Sensor: Dot count type

• Maximum Print Resolution: 4,800 (horizontal) × 1,200 (vertical) dpi

• Print Speed (A4, ISO):

  • Mono: Up to 7.7 ipm

  • Colour: Up to 4.0 ipm

• Photo Print Speed (4″ × 6″): Approximately 65 seconds

• Printable Width: Up to 203.2 mm (8″)

  • Borderless Printing: Up to 216 mm (8.5″)

Scanning

• Scanner Type: Flatbed

• Scanner Method: CIS (Contact Image Sensor)

• Optical Resolution: 600 × 1,200 dpi

• Scanning Bit Depth (Input/Output):

  • Grayscale: 16 bit / 8 bit

  • Colour: RGB each 16 bit / 8 bit

• Line Scanning Speed (300 dpi):

  • Grayscale: 1.5 ms/line

  • Colour: 3.5 ms/line

• Maximum Document Size: A4 / LTR (216 × 297 mm)

Copying

• Maximum Document Size: A4 / LTR

• Compatible Media Sizes: A4, A5, A6, B5, LTR, 4″ × 6″, 5″ × 7″, Square (5″ × 5″)

• Compatible Media Types: Plain Paper (64–105 g/m²), Photo Paper Plus Glossy II (PP-201/PP-208)

• Image Quality: 3 positions (Draft, Standard, High)

• Copy Speed (Colour, A4):

  • First Copy Out Time (sFCOT): Approximately 27 seconds

  • Simplex Copy Speed (sESAT): Approximately 3.0 ipm

• Multiple Copy: Up to 20 pages (Mono/Colour)

Connectivity

• Interface: USB 2.0

• Wireless LAN:

  • Network Type: IEEE 802.11b/g/n

  • Security: WEP (64 bit/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)

  • Direct Connection (Wireless LAN): Available

Mobile and Cloud Printing Solutions

• AirPrint: Available

• Mopria Print Service: Available

• Canon Print Service (for Android): Available

• Cloud Integration Service: Available

• Easy-PhotoPrint Editor (for iOS/Android): Available

• Canon PRINT (for iOS/Android): Available

• Creative Park: Available

General Specifications

• Power Requirements: AC 100–240 V, 50/60 Hz

• Power Consumption:

  • OFF: Approximately 0.3 W

  • Standby (scanning lamp is off): Approximately 0.8 W

  • Copying: Approximately 9 W

• Dimensions (W × D × H):

  • Factory Configuration: 435 × 327 × 145 mm

• Weight: Approximately 4 kg

• Operating Environment:

  • Temperature: 5–35°C

  • Humidity: 10–90% RH (no dew condensation)

• Recommended Operating Environment:

  • Temperature: 15–30°C

  • Humidity: 10–80% RH (no dew condensation)

• Storage Environment:

  • Temperature: 0–40°C

  • Humidity: 5–95% RH (no dew condensation)

• Acoustic Noise (PC Print): Approximately 48.0 dB(A)

Page Yield

• Plain Paper (A4 Colour Documents):

  • Standard:

    • PG-47: Approximately 400 pages

    • CL-57S: Approximately 180 pages

  • Optional:

    • CL-57: Approximately 300 pages

• Photo Paper (PP-201, 4″ × 6″):

  • Standard:

    • PG-47: Approximately 3,520 pages

    • CL-57S: Approximately 55 pages

  • Optional:

    • CL-57: Approximately 90 pages
