Epson WorkForce DS-7500 Flatbed Document Scanner with Duplex ADF

Description

Overview & Design

• Combines an A4 flatbed scanner with a 100-sheet Automatic Document Feeder (ADF) capable of one-pass duplex scanning

• Delivers high-speed scanning: up to 40 ppm (monochrome/color simplex) and 80 ipm (duplex)

• Built for demanding workflows with a daily scanning volume of up to 4,000 pages

• Utilizes ReadyScan LED lighting—no warm-up time, energy-efficient, and mercury‑free

Optical Quality & Imaging

• Flatbed optical resolution: 1200 × 1200 dpi

• ADF optical resolution: 600 × 600 dpi

• Output resolution spans from 50 to 9,600 dpi (in 1 dpi increments)

• Color depth:

  • Color: 48‑bit input → 24‑bit output

  • Grayscale: 16‑bit input → 8‑bit output

  • Monochrome: 16‑bit input → 1‑bit output

Speed & Performance

• Flatbed:

  • At 300 dpi: ~8 seconds (monochrome/color)

  • At 600 dpi: ~22 seconds (monochrome/color)

• ADF (Simplex / Duplex speeds):

  • 200/300 dpi: up to 40 ppm / 80 ipm (both B/W and color)

  • 600 dpi: B/W up to 8 ppm / 16 ipm; color slightly lower speeds

Media Handling

• Handles documents up to 8.5″ × 40″ (ADF) and 8.5″ × 11.7″ (flatbed)

• Accepts paper weights between 50–128 g/m², and up to 190 g/m² for mini media (< A6 size) on the flatbed

• Includes an ultrasonic sensor for double‑feed detection, ensuring reliable, error‑free batch scanning

Software & Features

• Bundled applications include Epson Scan 2 and Document Capture Pro for efficient document management

• Support for OCR, searchable PDFs, blank-page skipping, book-spine correction, skew correction, barcode recognition, color enhancement/dropout, zonal OCR, and up to 30 programmable job presets

• Streamlined integration for workflows—scan to email, FTP, SharePoint, print, network folders, or cloud services

Connectivity & Platform Support

• Standard interface: USB 2.0 High-Speed

• Optional network interface panel enables Ethernet push-scan capabilities

• Supports scanning drivers like TWAIN, ISIS, WIA, ICA (Mac), and SANE (Linux)

• Compatible with Windows (including Server editions) and macOS

Physical & Power Specifications

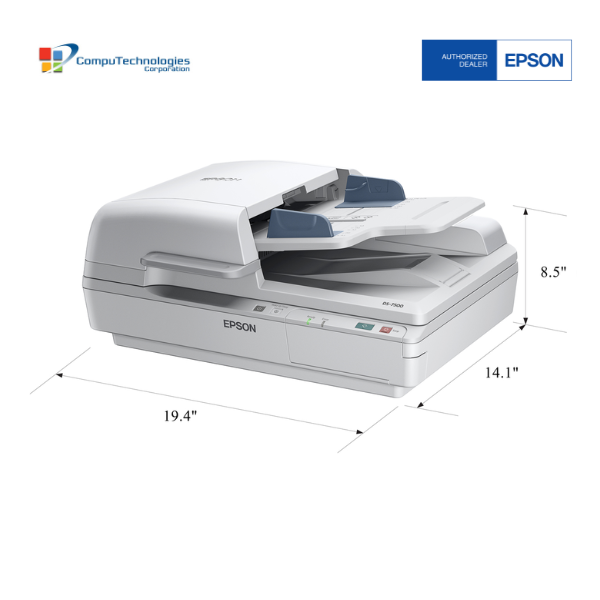

• Dimensions: Approximately 495 × 360 × 217 mm (W × D × H)

• Weight: Around 9.8 kg

• Power consumption:

  • Operating: ~45 W

  • Ready: ~12 W

  • Sleep: ~1.6 W

  • Off: ~0.4 W

• Operational conditions:

  • Temperature: 5–35 °C

  • Humidity: 10–80% RH (non‑condensing)

  • Storage: –25 to 60 °C; 10–85% RH

• Approximate noise level during operation: 54 dB(A)
