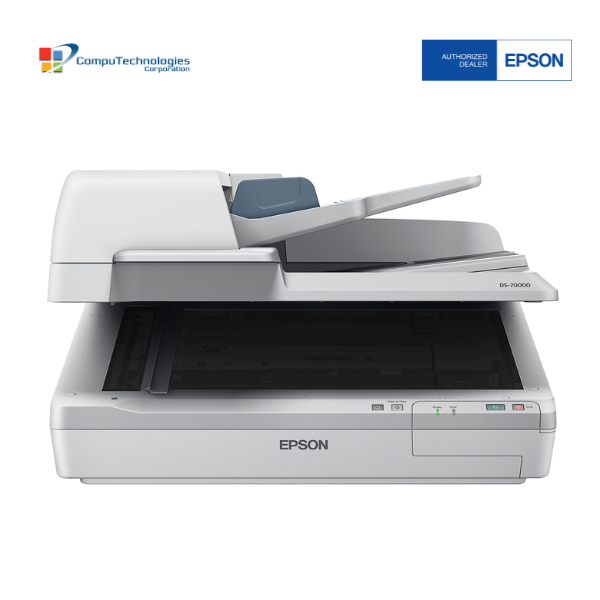

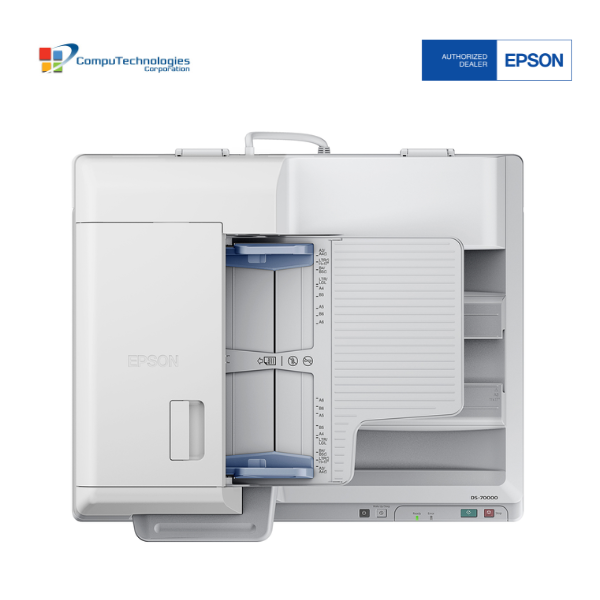

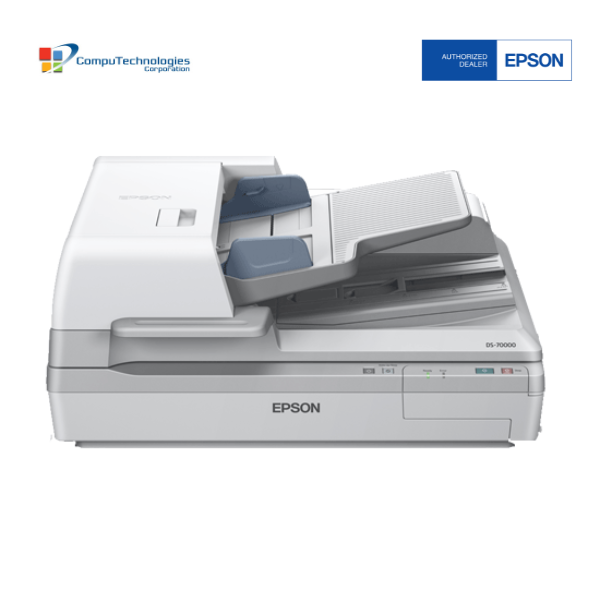

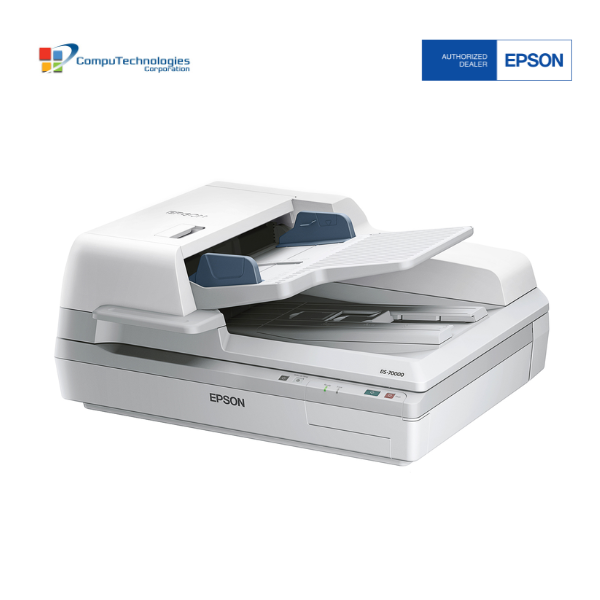

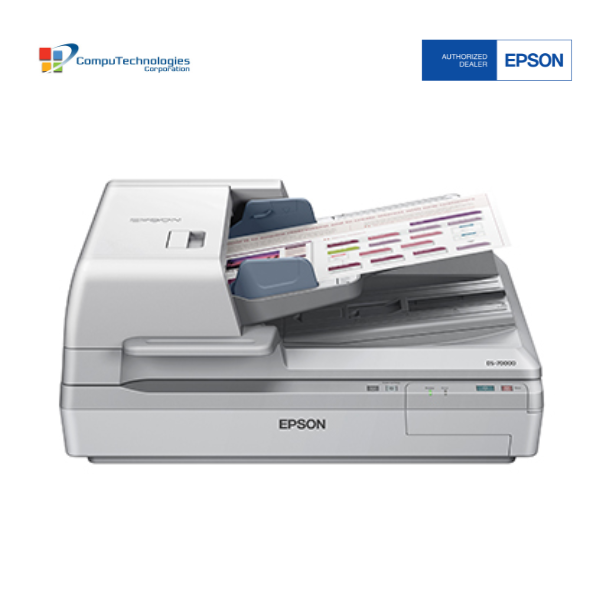

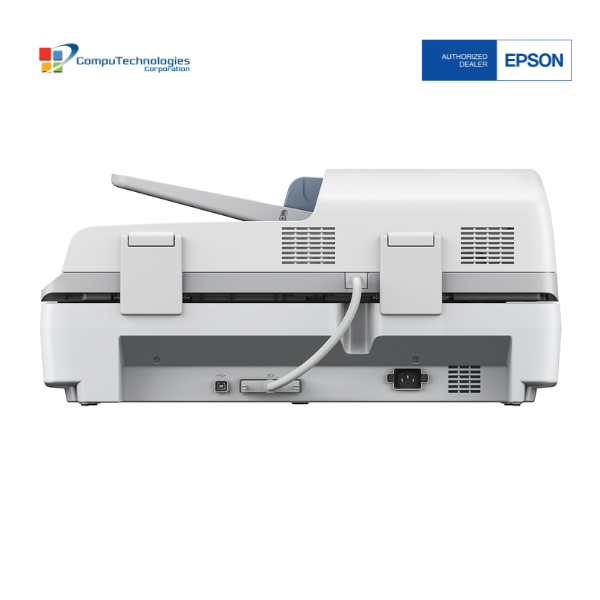

Epson WorkForce DS-70000 A3 Flatbed Document Scanner with Duplex ADF

Description

Overview & Design

• A versatile A3 flatbed scanner paired with a one‑pass duplex Automatic Document Feeder (ADF)

• Exceptional scan speeds: up to 70 pages per minute (simplex) or 140 images per minute (duplex)

• Built for high-volume workflows with a daily scanning capacity of up to 8,000 sheets

• ADF can hold up to 200 sheets, with robust feeding and misfeed detection

Optics & Image Quality

• Uses a 4‑line colour CCD sensor for crisp, high-definition scanning

• Optical resolution: 600 × 600 dpi for both flatbed and ADF scanning

• Output resolution supports a broad range from 50 dpi up to 9,600 dpi (varies by model/software)

• Bit-depth:

  • Colour: 48‑bit input → 24‑bit output

  • Grayscale: 16‑bit input → 8‑bit output

  • Black & White: 16‑bit input → 1‑bit output

Scan Performance

• Flatbed:

  • 300 dpi: ~4 seconds per scan (color or mono)

  • 600 dpi: ~6 seconds (color); ~10 seconds (mono)

• ADF (Simplex / Duplex):

  • 200–300 dpi: up to 70 ppm / 140 ipm (both B/W and colour)

  • 600 dpi: up to 25 ppm (mono) / 12 ppm (colour); duplex: 50 ipm (mono) / 24 ipm (colour)

Media Handling

• ADF document size support: from 68 × 120 mm (minimum) up to 297 × 2,540 mm (maximum)

• Flatbed document size support: up to 297 × 420 mm (A3)

• Paper weight ranges:

  • General: 35–128 g/m²

  • Smaller media (< A6): 60–190 g/m²

• Ultrasonic multi-feed detection ensures accurate, jam-free scanning

Advanced Software Features

• Includes Epson Scan 2 and Document Capture Pro, enabling:

  • OCR and searchable PDFs

  • Colour enhancement/dropout, skew correction, blank-page removal, barcode recognition

  • Automatic folder creation, job presets, and advanced PDF options (secure, PDF/A)

  • Seamless scan-to workflows: email, FTP, SharePoint, cloud services, and network folders

Connectivity & Compatibility

• Interface: USB 2.0 High Speed (standard)

• Optional: Ethernet network interface panel for LAN-based push-scan capabilities

• OS Compatibility: Broad support across Windows (including Server editions) and macOS

• Supports popular scan driver protocols: TWAIN, WIA, ISIS, ICA, and SANE

Power & Build

• Size: Approx. 640 × 522 × 289 mm (W × D × H)

• Weight: Around 26.9 kg

• Power requirements:

  • Operating: ~79 W

  • Ready: ~12.5 W

  • Sleep: ~1.5 W

  • Off: ~0.5 W

• ENERGY STAR–certified (model-dependent)

• Environment:

  • Operating: 5–35 °C, 10–80% RH (non-condensing)

  • Storage: –25 to 60 °C, 10–85% RH

Extras & Maintenance

• Optional Network Interface Panel adds Ethernet connectivity and a push-scan LCD interface

• Rollers and maintenance parts like the Roller Assembly Kit are available for high-frequency use

• Comes with a 1-year onsite warranty, with extended warranty options available
