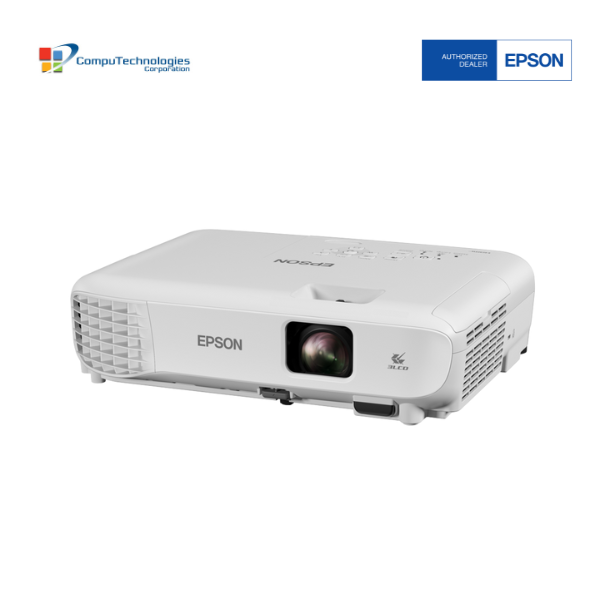

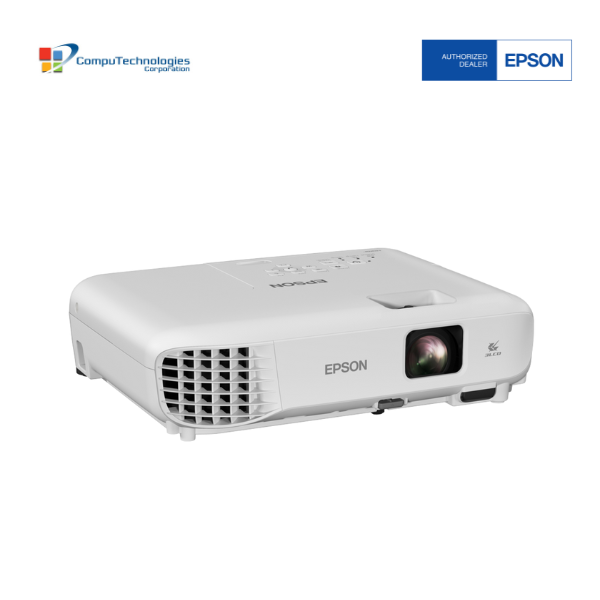

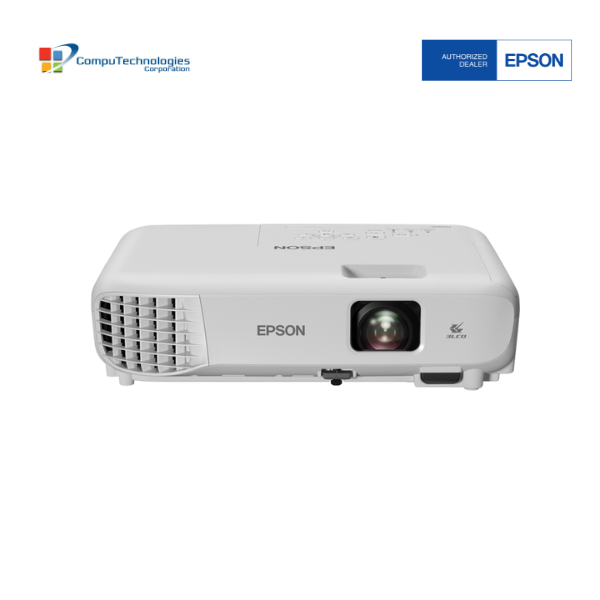

Epson EB-E01 XGA 3LCD Projector

Description

Key Specifications:

Projection Technology

• 3LCD, RGB liquid crystal shutter

• Native Resolution: XGA (1024 × 768), 4:3 aspect ratio

• LCD panel size: 0.55″ “C2Fine”

Brightness & Image Quality

• White Light Output: 3,300 lumens (Normal), ~2,200 lumens in Eco mode

• Colour Light Output: 3,300 lumens (Normal), ~2,200 lumens in Eco mode

• Contrast Ratio: 15,000 : 1

Lamp / Light Source

• Type: UHE lamp, ~210 W

• Lamp life: ~6,000 hours (Normal), ~12,000 hours (Eco mode)

Optics & Throw / Screen Size

• Throw Ratio: ~1.44 – 1.95 :1 (wide to tele)

• Zoom: Digital, factor ≈ 1.35×

• Lens Focus: Manual

• F-Number: 1.44

• Focal length: ~16.7 mm

• Screen Size: From ~30″ up to ~350″ diagonal

• Projection distance for ~60″ screen: ~1.76 m

Keystone and Offset

• Keystone Correction: Manual vertical ±30°, manual horizontal ±30°

• Offset: ~8:1

Colour Capabilities

• Colour reproduction: Up to ~1.07 billion colours

• Colour & Video modes: Dynamic, Cinema, Presentation, sRGB, Blackboard

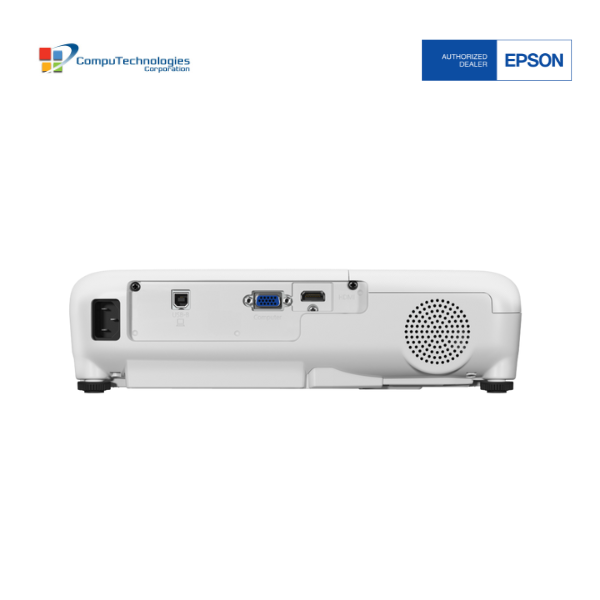

Connectivity

• Inputs: HDMI ×1, VGA (D-Sub 15-pin) ×1

• USB: USB Type-B ×1 (for firmware update / copy OSD settings)

• Built-in speaker: ~2 W mono

Advanced Features

• Quick setup and positioning flexibility

• Built-in speaker

• Direct power on/off

• Split-screen function

• Security features: Kensington lock, security bar, password protection

General / Physical

• Dimensions (W × D × H, excluding feet): approx. 302 × 237 × 82 mm

• Weight: ~2.4 kg

• Noise level: ~37 dB (Normal), ~28 dB (Eco)

• Operating temperature: ~5-40 °C (low altitude), somewhat lower maximum at high altitude

• Operating altitude: up to ~3,048 m

Power / Electrical

• Power supply: AC 100-240 V, 50/60 Hz

• Power consumption: ~286 W in typical mode, less in Eco mode, very low when on standby

Warranty

• Standard warranty (~1 years carry-in)

• Lamp warranty may differ in terms of hours vs months
