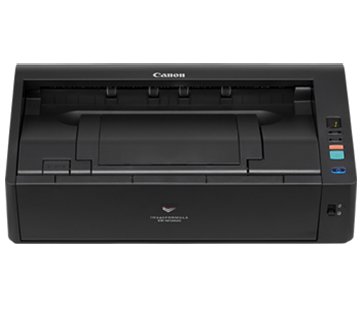

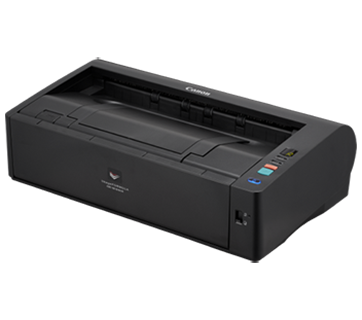

Canon imageFORMULA DR-M1060II

Description

Specifications

• Sheet‑fed desktop scanner (A3 capable)

• Simplex scanning speed: up to 60 ppm

• Duplex scanning speed: up to 120 ipm

• Optical resolution: 600 dpi

• Output resolutions: 100, 150, 200, 240, 300, 400, 600 dpi

Document Handling

• Auto Document Feeder (ADF) capacity: 80 sheets (A4, 80 g/m²)

• Paper width: 50.8 – 300 mm

• Paper length: 70 – 432 mm

• Long document support: up to ~3,000 mm (straight feed)

• Paper thicknesses / weights:
    • U‑turn path: 0.04 – 0.15 mm (~27 – 128 g/m²)
    • Straight path: 0.04 – 0.30 mm (~27 – 255 g/m²)

• Supports business cards, plastic/embossed cards (up to ~1.4 mm)

• Separating method: retard roller + pre‑separation

• Feeding paths: U‑turn (compact) and straight (for thicker/long docs)

Optical / Image Sensor & Lighting

• Sensor: Single‑line Contact Image Sensor (CIS)

• Light source: RGB LED

Interface & Connectivity

• USB 2.0 (compatible with USB 3.2 Gen 1 ports)

Power & Consumption

• Power supply: AC 100‑240 V, 50/60 Hz

• Consumption:
    • Scanning: up to 32.5 W
    • Sleep mode: ~1.9 W
    • Off: ~0.1 W

Physical & Environmental

• Dimensions (tray closed): 424 × 246 × 120 mm

• Dimensions (trays open / extended): 424 × 440 × 210 mm

• Weight: ~6.1 kg

• Operating environment: 10 – 32.5 °C, humidity 20% – 80% RH

• Compliance: RoHS

Duty & Recommended Use

• Suggested daily usage: 7,500 – 13,000 scans/day

Special Features & Image Processing

• Auto color detection / auto page size

• Deskew, image rotation

• Skip blank pages

• Double‑feed detection (ultrasonic) with release (DFR)

• Background smoothing, color dropout / color enhancement

• MultiStream (output multiple images/formats from one scan)

• Batch separation (patch codes, blank pages, barcode, OCR zones)

• Folio scanning mode

• Text enhancement modes

• Moiré reduction, bleed‑through prevention / background removal

• Imprinter support (optional)

• Quick recovery, auto resolution, character emphasis

Software & Drivers

• Comes with CaptureOnTouch Pro software

• Supports ISIS / TWAIN drivers

Optional / Accessory Items

• Replacement roller kits

• Flatbed scanner attachment (e.g. flatbed unit)
