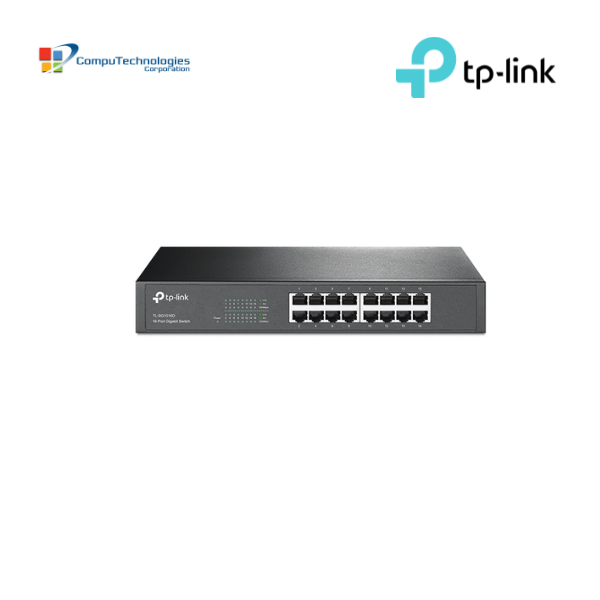

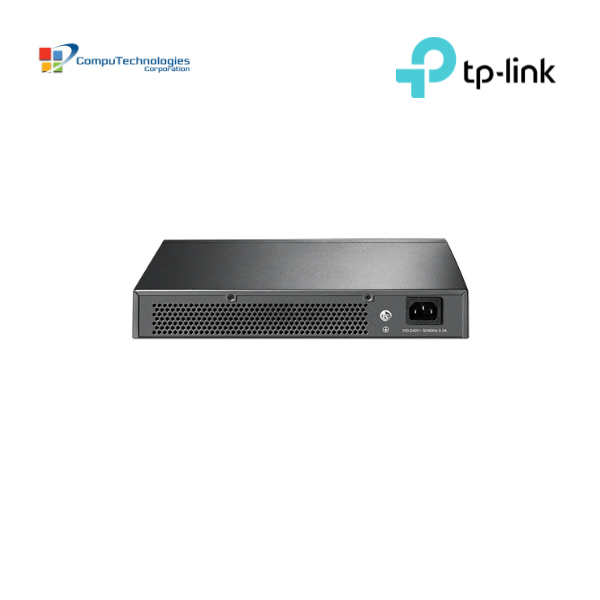

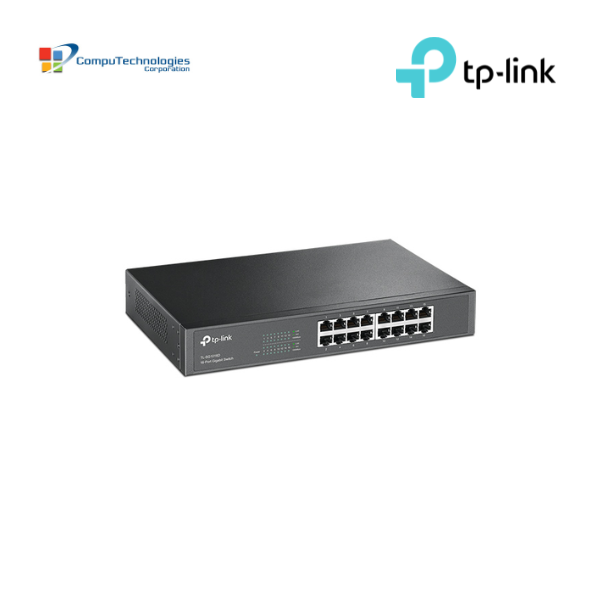

TL-SG1016D

Description

Interfaces: 16 × 10/100/1000Mbps RJ45

Network Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Auto Negotiation: Yes

Auto MDI/MDIX: Yes

Switching Capacity: 32 Gbps

Packet Forwarding Rate: 23.8 Mpps

MAC Address Table: 8K

Jumbo Frame: 10 KB

Transmission Method: Store-and-Forward

Flow Control: IEEE 802.3x

Green Technology: Yes

Cooling: Fanless

Power Supply: 100–240V AC, 50/60Hz

Maximum Power Consumption: 9.95W at 220V/50Hz*

Dimensions: 294 × 180 × 44 mm

Rackmount: Yes

LED Indicators: Power, 1000Mbps, Link/Act

Network Media

• 10BASE-T: UTP Category 3, 4 or 5 cable, up to 100m
• 100BASE-TX: UTP Category 5 or better, up to 100m
• 1000BASE-T: UTP Category 5, 5e or better, up to 100m

Advanced Features

• Isolation Mode: Ports 1–14
• Loop Prevention: Ports 1–16
• Jumbo Frame: Up to 10 KB
• MAC Address Learning: Automatic
• Green Technology: Energy-efficient operation

Operating Environment

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% RH, non-condensing
• Storage Humidity: 5%–90% RH, non-condensing

Certification

• FCC
• CE
• RoHS

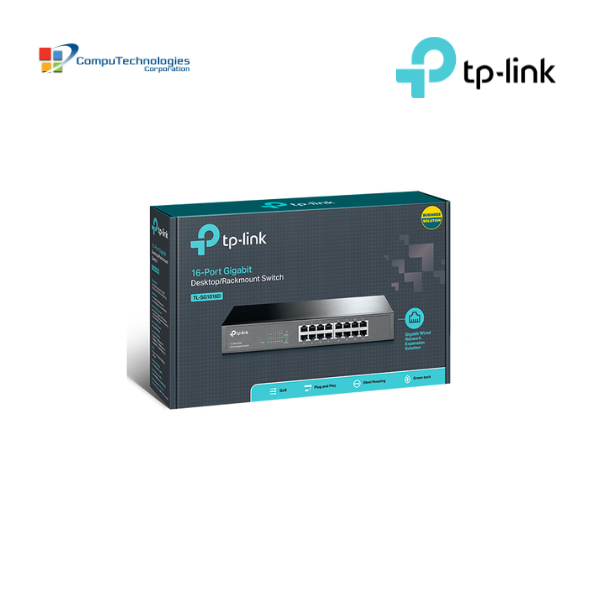

Package Contents

• 1 × TL-SG1016D 16-Port Gigabit Switch
• Power Cord
• Installation Guide
• Rackmount Kits
• Rubber Feet
