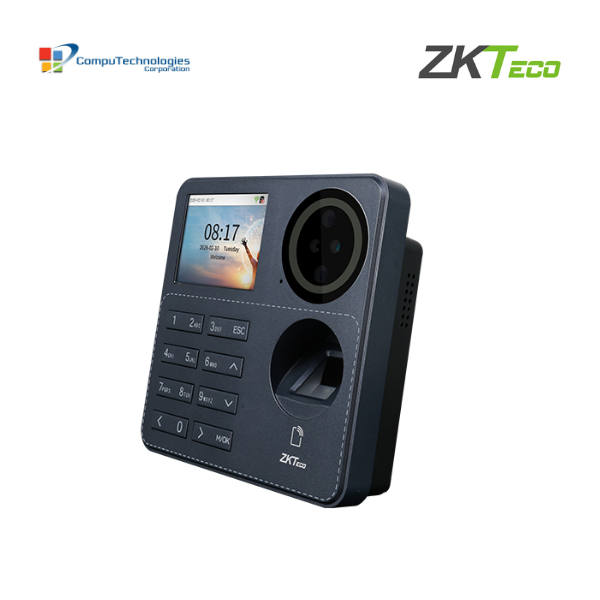

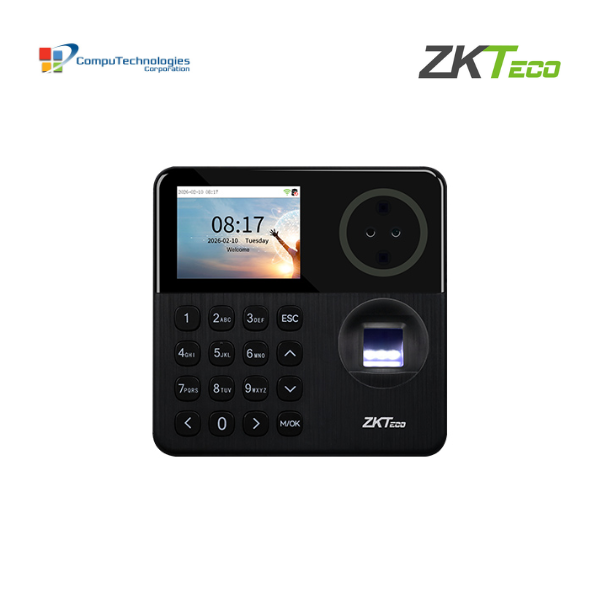

SenseFace T1 & SenseFace T2

Description

Specifications

Display
2.4-inch TFT color LCD (320 × 240 resolution)

Camera
1MP WDR binocular camera

Operating System
Linux-based system

Hardware Configuration

SenseFace T1

• Dual-core CPU @ 1GHz
• 512MB RAM / 8GB ROM
• 1W speaker (8Ω)
• Dual near-infrared supplementary lights
• 16-key physical keypad
• Black finish
• ZK optical fingerprint sensor

SenseFace T2

• Dual-core CPU @ 1GHz
• 512MB RAM / 8GB ROM
• 1W speaker (8Ω)
• Dual near-infrared supplementary lights
• 8-key physical keypad
• Blue finish
• ZK optical fingerprint sensor

Authentication Methods

• Facial recognition
• Fingerprint
• Card (optional)
• Password (via keypad)

Capacity

• Face templates: 1,500
• Fingerprint templates: 1,500
• Card users: 3,000
• Total users: 3,000
• Transaction logs: 150,000

Performance

• Facial recognition speed: < 0.35 seconds
• Fingerprint recognition speed: < 0.5 seconds
• FAR (False Acceptance Rate):
  • Face: ≤ 0.01%
  • Fingerprint: ≤ 0.0001%
• FRR (False Rejection Rate):
  • Face: ≤ 0.02%
  • Fingerprint: ≤ 0.01%

Algorithms

• ZK Facial V4.0 (standard)
• ZKFingerprint V13.0 (standard) / V10.0 (optional)

Card Compatibility (Optional)

• ID Card (125 kHz)
• IC Card (13.56 MHz)

Connectivity

• Wi-Fi (2.4GHz, IEEE 802.11 b/g/n/ax, Wi-Fi 6 ready)
• USB Type-A 2.0 (for flash drive only)

Standard Features

• ADMS, DST, and workcode support
• Up to 14-digit user ID
• Record search and schedule bell
• Auto status switching
• Self-service reporting (T&A rules dependent)
• Multiple authentication modes
• Secure access via HTTPS and SSH
• T9 keypad input
• Online firmware upgrades
• Tap-to-unlock (ESC button)

Optional Features

• ID / IC card support
• Backup battery

Power & Environment

• Power supply: DC 5V / 2A
• Operating temperature: -5°C to 45°C
• Humidity: 20%–80% RH (non-condensing)

Backup Battery (Optional)

• 2000mAh lithium battery
• Up to 2 hours operation
• Up to 3.5 hours standby
• Charging time: approx. 5 hours

Physical Details

• Dimensions: 117.5 × 116.6 × 31.0 mm
• Net weight: 0.24 kg
• Gross weight: 0.45 kg

Software Support

• Cloud: ZKBio Zlink (Web & mobile app)
• On-premise: ZKBio Time (TA PUSH)

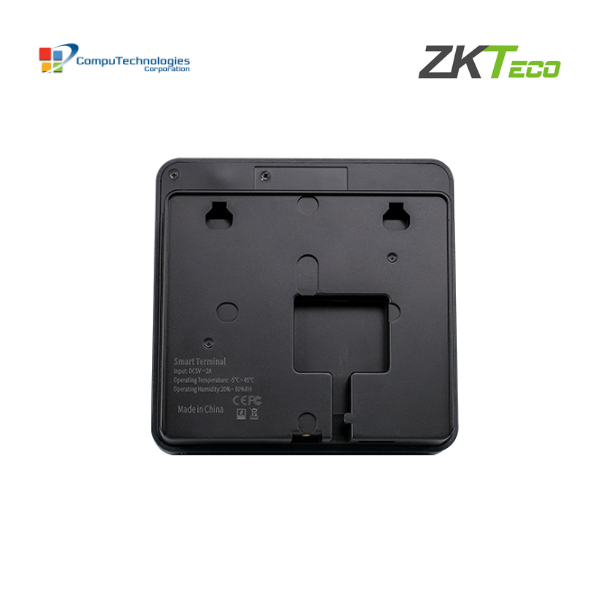

Installation Options

• Wall-mounted (compatible with Asian/single gang box)
• Desk-mounted (compatible with Rots-4 stand)

Certifications

ISO 9001, ISO 14001, CE, FCC, RoHS

Order Codes

• SenseFace T1: TA01-VL06H-21
• SenseFace T2: TA01-VL060H-21
