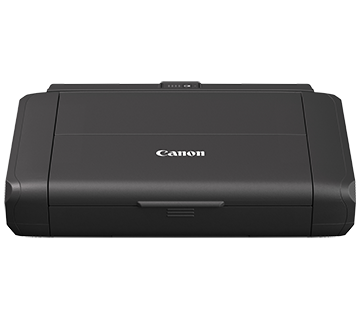

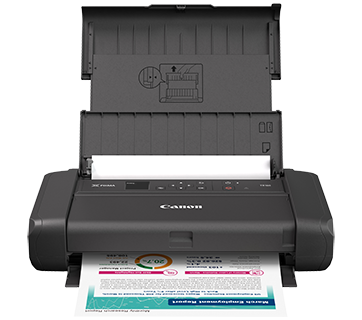

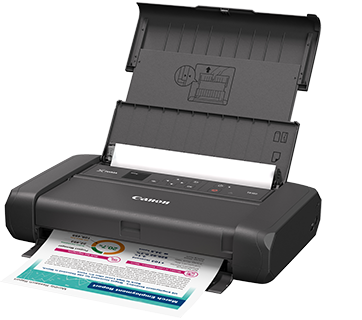

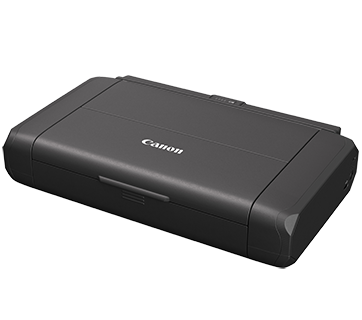

PIXMA TR160 (with Removable Battery)

Description

Print Performance

• Print speed (A4 ISO): up to 9 images per minute (black) and 5.5 images per minute (color)

• First page out time: approximately 11 seconds (black), 15 seconds (color)

• Photo print (4×6″ borderless): approximately 53 seconds

• Maximum resolution: 4800 × 1200 dpi

• Total nozzles: 1856 (320 black, 1536 color)

Ink System

• 5-color hybrid ink system (pigment black + dye-based color inks)

• Compatible cartridges: PGI-35 (black) and CLI-36 (color)

• Estimated yields: PGI-35 black ~200 pages; CLI-36 color ~260 pages per set

• Ink volume: PGI-35 ~9.3 ml; CLI-36 ~12.0 ml

Media Handling

• Rear tray capacity: 50 sheets (plain paper)

• Supported media: plain paper, glossy, matte, high-res coated paper, magnetic photo paper, restickable photo paper, greeting cards, envelopes

• Supported sizes: A4, A5, B5, Letter, Legal, 4×6″, 5×7″, 7×10″, 8×10″, 3.5×3.5″, 5×5″, envelopes (COM10, DL), business cards (91×55 mm), custom (55–215.9 mm width × 89–676 mm length)

• Borderless printing: available up to Letter/A4 size

• Paper weight: 64–105 g/m² (plain); up to ~275 g/m² (photo)

Connectivity & Features

• Interface: USB-C (Hi-Speed USB 2.0), dual-band Wi-Fi (2.4 GHz / 5 GHz), Wi-Fi Direct

• Wireless printing: Apple AirPrint, Mopria, Canon PRINT app, Canon Print Service (Android), PIXMA Cloud, PosterArtist, Easy-PhotoPrint Editor

• Security: WPA-PSK, WPA2-PSK, WPA3-SAE, TLS 1.3 encryption

• Display: 1.44″ monochrome OLED screen (shows ink levels, battery status, network info)

• Built-in memory: stores up to 5 custom templates for direct printing

• Convenience features: quiet mode, auto power on/off, red-eye correction, auto photo fix, anti-theft lock slot

Battery & Power

• Battery model: LK-72 lithium-ion (removable/optional)

• Voltage/capacity: 10.8 V / 2170 mAh

• Charging time (AC): approx. 2 hours 20 minutes

• Charging time (USB 1.5 A): approx. 5 hours

• Quick charge (AC): 10 minutes yields ~36 pages

• Quick charge (USB): 5 minutes yields ~4 pages

• Battery print yield (full charge): up to ~330 pages

• Power consumption: approx. 8 W (printing), 1.1–1.6 W (standby), 0.15 W (off)

• Energy efficiency: ENERGY STAR certified, EPEAT Silver rating

Dimensions & Weight

• Without battery: 322 × 185 × 66 mm

• With battery: 322 × 210 × 66 mm

• With paper tray extended: 322 × 307 × 245 mm

• Weight: approx. 2.1 kg without battery; 2.3 kg with battery

Environmental Conditions

• Operating temperature: 5–35 °C (recommended 15–30 °C)

• Humidity: 10–90% RH (recommended up to 80%)

• Noise level: approx. 40.5 dB in standard print mode

Recommended Use & Reliability

• Recommended monthly volume: 10–80 pages

• Maximum monthly duty cycle: up to 500 pages

• Warranty: typically 1-year limited with InstantExchange support (varies by region)
