PIXMA G3010

Description

General

• Printer Type: Refillable Ink Tank, Wireless All‑In‑One (Print, Scan, Copy)

• Recommended Monthly Print Volume: 150–1,500 pages

• Design: Integrated, spill-resistant ink tanks with visible ink level indicator

• Functions: Print, Scan, Copy

Print Specifications

• Maximum Print Resolution: 4,800 × 1,200 dpi

• Print Head Nozzles: Total 1,472 (Black 320, Cyan/Magenta/Yellow 384 each)

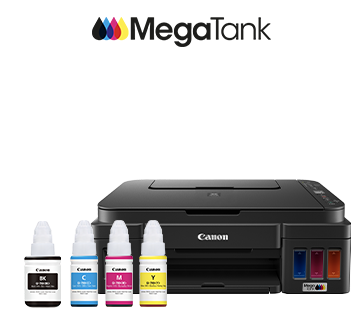

• Ink Bottles: GI‑790 series — Pigment Black, Dye‑based Cyan, Magenta, Yellow

• Print Speed (ISO/IEC 24734):

  • Mono: Approx. 8.8 ipm

  • Colour: Approx. 5.0 ipm

• First Print Out Time (FPOT) (Ready state):

  • Mono: ~11 seconds

  • Colour: ~17 seconds

• Borderless 4×6″ Photo Print: Approx. 60 seconds

• Printable Width:

  • Bordered: Up to 203.2 mm (8″)

  • Borderless: Up to 216 mm (8.5″)

• Borderless Printing Area: 0 mm margin

• Bordered Printing Margins:

  • Top: 3 mm, Bottom: 5 mm, Left/Right: 3.4 mm (Letter/Legal: Left 6.4 mm / Right 6.3 mm)

• Recommended Printable Area Margins:

  • Top: 31.2 mm, Bottom: 32.5 mm

Paper Handling

• Supported Media Sizes: A4, A5, B5, Letter, Legal, 4×6″, 5×7″, 8×10″, Square 5×5″, Business Card, Envelopes (DL, COM10), Custom (55–215.9 mm width × 89–676 mm length), F4 via custom size

• Rear Tray Capacity:

  • Plain Paper (A4/A5/B5/Letter): Up to 100 sheets

  • Legal: 10 sheets

  • High-Res/Glossy/Matte/Sticker/Envelopes: various, typical 10–20 sheets depending on type

• Paper Weight:

  • Plain Paper: 64–105 g/m²

  • Specialty Paper: Up to 275 g/m²

Scan Specifications

• Scanner Type: Flatbed (Platen) with CIS (Contact Image Sensor)

• Optical Resolution: 600 × 1,200 dpi

• Bit Depth:

  • Grayscale: 16-bit input / 8-bit output

  • Colour (RGB): 48-bit input / 24-bit output

• Scanning Speeds (A4, 300 dpi):

  • Grayscale: ~1.5 ms/line

  • Colour: ~3.5 ms/line

  • Reflective Colour Copy: ~19 seconds

• Maximum Scan Document Size: A4 / Letter (216 × 297 mm)

Copy Specifications

• Max Document Size: A4 / Letter (216 × 297 mm)

• Copy Speed:

  • First Copy Out Time (Colour): ~24 seconds

  • Simplex ESAT (Colour): ~3.5 ipm

  • Mono figures are equivalent (~8.8 ipm)

• Multiple Copies: Up to 20 pages

• Copy Quality Settings: Fast, Standard

Connectivity & Printing Solutions

• Interfaces:

  • Wireless: Wi‑Fi (IEEE 802.11b/g/n, 2.4 GHz, Channels 1–13)

  • USB: Hi‑Speed USB 2.0

  • Wireless Direct (AP Mode): Supported

• Security: WEP 64/128-bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)

• Print-From-Mobile / Cloud Solutions:

  • Canon PRINT Inkjet/SELPHY App (iOS/Android)

  • Canon Easy‑PhotoPrint Editor

  • Mopria Print Service

  • AirPrint (varies by region)

  • PIXMA Cloud Link

System Requirements

• Operating Systems:

  • Windows: 10, 8.1, 7 SP1

  • Mac: Not supported

  • Chrome OS: Supported

Physical & Power

• Operation Panel: 1.2″ monochrome LCD

• Dimensions:

  • With trays retracted: Approx. 445 × 330 × 163 mm

  • With output trays extended: Approx. 445 × 533 × 260 mm

• Weight: Approx. 6.3 kg

• Power:

  • AC 100–240 V, 50/60 Hz

  • Power Consumption (Approx.):

    • Printing/Copying: ~11 W

    • Standby (USB only / all ports): ~1.2 W

    • Off: ~0.2 W

Acoustic & Environmental

• Noise Level: Approx. 53.5 dB(A) (mono printing, plain paper)

• Quiet Mode: Available

• Operating Conditions:

  • Temperature: 5–35 °C

  • Humidity: 10–90% RH (no condensation)

• Recommended Conditions:

  • Temperature: 15–30 °C

  • Humidity: 10–80% RH

• Storage Conditions:

  • Temperature: 0–40 °C

  • Humidity: 5–95% RH (no dew)

Page Yield (Estimated)

• Pigment Black (GI‑790 PGBK): Approx. 6,000 pages (A4 colour document simulation)

• Colour (GI‑790 C/M/Y): Approx. 7,000 pages per colour

• 4×6″ Photo Prints (GI‑790 C/M/Y): Approx. 2,000 sheets
