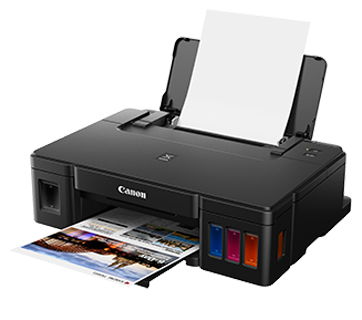

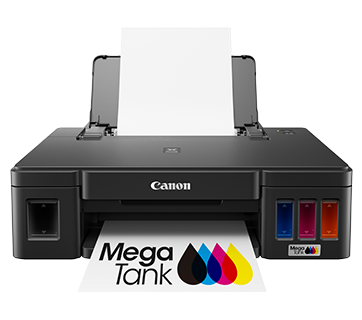

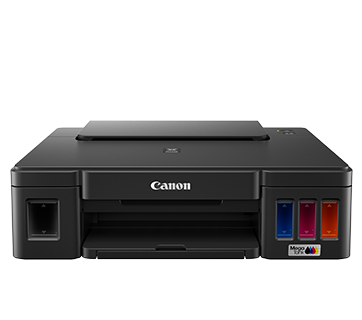

PIXMA G1010

Print Specification

• Print Technology: FINE print head

• Nozzle Count:

  • Approximately 1,472 nozzles total

• Ink System:

  • Refillable GI‑790 bottles (Pigment Black; Dye-based Cyan, Magenta, Yellow)

  • Estimated yield: up to 6,000 pages (black) and 7,000 pages (each color) for A4 documents

• Maximum Print Resolution: 4,800 × 1,200 dpi

• Print Speeds (A4, ISO):

  • Mono: up to 8.8 ipm

  • Colour: up to 5 ipm

• First‑Page‑Out Times (Ready State):

  • Mono: approx. 13 sec

  • Colour: approx. 19 sec

• Photo Speed (4″ × 6″, borderless): approx. 60 sec

• Printable Width:

  • Bordered: up to 203.2 mm (8″)

  • Borderless: up to 216 mm (8.5″)

• Borderless Margins: 0 mm all around (supported for A4, Letter, 4×6, 5×7, 8×10, 5×5 square, business card)

• Bordered Margins:

  • General: top 3 mm, bottom 5 mm, sides ~3.4 mm

  • Letter/Legal: sides ~6.3‑6.4 mm

• Recommended Printable Area:

  • Top margin: ~31.2 mm, Bottom: ~32.5 mm

Paper Handling

• Rear Input Tray Capacities:

  • Plain A4/Letter: up to 100 sheets

  • Legal: up to 10 sheets

  • High-res media: about 80 sheets

  • 4×6″ photo paper: up to 20 sheets

  • Envelopes: up to 10 sheets

• Supported Media:

  • Plain, HR-coated, glossy, semi-gloss, matte, luster, photo stickers, envelopes

• Sizes Supported:

  • A4, A5, B5, Letter, Legal, 4×6″, 5×7″, 8×10″, Square (5×5″), Business Card, DL/COM10 envelopes, and custom (width 55–215.9 mm; length 89–676 mm)

• Paper Weight Range:

  • Plain: 64–105 g/m²

  • Photo media up to ~275 g/m²

Scanning

• Scanner Type: Flatbed with CIS sensor

• Optical Resolution: 600 × 1,200 dpi

• Bit Depth:

  • Grayscale: 16-bit input / 8-bit output

  • Color: 48-bit input / 24-bit output

• Scanning Speed (@300 dpi):

  • Grayscale: ~1.5 ms per line

  • Color: ~3.5 ms per line

• Max Scan Size: A4 / Letter

Copying

• Copy Speed: ~31 seconds for first copy; continuous rate ~1.6 ipm

• Copy Quantity: Up to 21 pages per batch

• Quality Modes: Fast / Standard

System & Environment

• Operating Systems: Windows 10, 8.1, 7 SP1 (macOS not supported)

• Quiet Mode: Yes

• Noise Level: ~54.5 dB(A) (mono printing on plain paper)

• Power:

  • Off: ~0.2 W

  • Standby: ~0.6 W

  • Operational: ~11 W

• Dimensions & Weight:

  • Closed: approximately 445 × 330 × 135 mm

  • With tray extended: about 445 × 529 × 253 mm

  • Weight: ~4.8 kg

• Operating Conditions:

  • Temp: 5–35 °C (optimal 15–30°C)

  • Humidity: 10–90% RH (optimal ≤ 80% RH)

  • Storage: 0–40 °C; 5–95% RH

Summary

The PIXMA G1010 is a reliable, entry-level ink tank printer that features:

• High-volume printing capability, with low running costs

• Borderless A4 photo printing with minimal maintenance

• Seamless compatibility with Windows (macOS not supported)

• A compact design suitable for home or small office walls

• Eco-minded features, including quiet mode and energy-efficient standby
