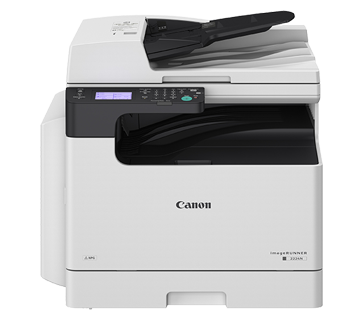

imageRUNNER 2224N/2224

Description

Core Features & Functionality

• A3 monochrome laser multifunction device.

• imageRUNNER 2224N supports Print, Copy, Scan, and Send capabilities.

• imageRUNNER 2224 offers Print, Copy, and Scan, with optional Send and Fax depending on configuration.

• User interface: 3.5‑inch monochrome touch panel.

Performance & Hardware

• Equipped with a dual-core processor (1.6 GHz) and 1 GB RAM; includes 2 GB eMMC storage.

• Fast warm-up: Power‑on ready in ≤ 13 seconds; from sleep mode in around 4.3 seconds.

Printing

• Speed: Up to 24 ppm for one‑sided printing (A4), 12 ppm (A3), and 11 ppm (A4R). Duplex can achieve up to ~16.7 ppm on A4 (with optional duplex unit).

• Resolution: Up to 1,200 × 1,200 dpi.

• Print languages: UFR II; PCL5/PCL6 optional on the 2224N.

• Offers watermarking, header/footer, layout, toner-saving, poster print, mixed media support, and print dating features.

• Mobile/cloud printing: AirPrint, Mopria, Canon PRINT Business, Universal Print by Microsoft available (for 2224N model).

Copying

• Copy speed mirrors print speed: up to 24 cpm (A4), 12 cpm (A3), 11 cpm (A4R); duplex speeds also achieve around 16.7 cpm.

• First copy output from platen: ~7.4 seconds.

• Copy resolution: 600 × 600 dpi.

• Multipage copy support: Up to 999 copies, density adjustable across 9 levels, with zoom range of 25%–400% (1% increments), plus standard preset ratios.

Scanning

• Flatbed scanning at up to 600 dpi; push/pull functionality supported.

• Optional Duplex Automatic Document Feeder (DADF) handles up to 50 sheets.

• Scan speeds supported:

  • One‑sided (300 dpi send, 600 dpi copy): Approx. 35 ipm / 25 ipm.

  • Two‑sided: Approx. 12 ipm (300 dpi) and 8 ipm (600 dpi) when using DADF.

• Supported file formats: TIFF, JPEG, PDF, Compact PDF.

• Address book and speed dial support includes LDAP and local storage.

Paper Handling

• Standard paper supply: 350 sheets (250‑sheet cassette + 100‑sheet multipurpose tray); expandable to 600 sheets with optional module.

• Output stacking: Approx. 250 sheets.

• Supports wide range of paper sizes (A3, A4, A5, B4, B5, envelopes, and custom up to ~297 × 432 mm).

• Handles paper weights from 60–157 g/m² (multipurpose tray) and 64–90 g/m² (cassette). Duplex: 60–90 g/m².

Security & Device Management

• Advanced security: Department ID and PIN authentication, secure print (including encrypted flows), NIST SP800‑193 system verification at startup.

• Network protection features: TLS 1.3, IPSec, IEEE 802.1X, SNMPv3, IP filtering, remote UI and USB interface control.

• Safeguards system integrity, job logs, and offers secure storage initialization and device policy settings.

Power & Environment

• Power usage:

  • Max: ~1,500 W

  • Standby: ~15.5 W

  • Sleep: ~0.9 W

• Operates within 10–30 °C at 20–80% relative humidity.

• Rated noise level around 55 dB during operation.

Dimensions & Weight

• Base dimensions: Approx. 627 × 589 × 502 mm (W×D×H) with platen — expandable up to ~627 × 607 × 698 mm with DADF and cassette installed.

• Recommended installation footprint: ~1065 × 1285 mm.

• Weight: Around 31–32 kg without consumables.

Supplies & Options

• Toner: Uses C‑EXV 42 black cartridge with estimated yield of ~10,200 pages (at 5% coverage).

• Expandable with optional modules:

  • Cassette Feeding Module (250‑sheet addition).

  • DADF for two‑sided scanning.

  • Accessory options like stapler and pedestal.
