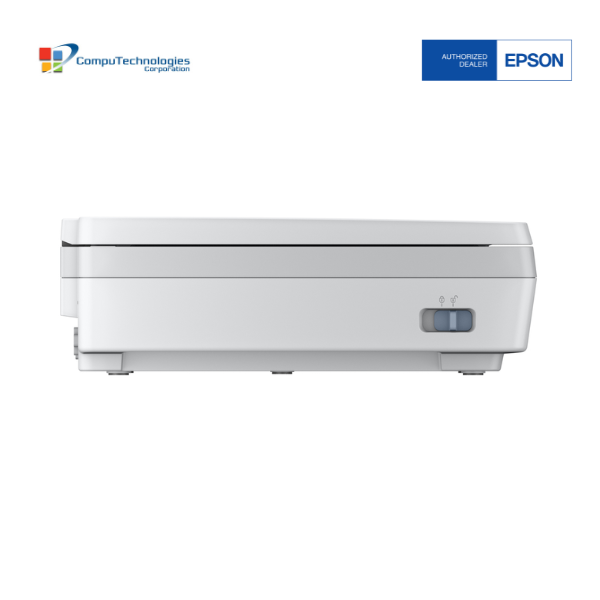

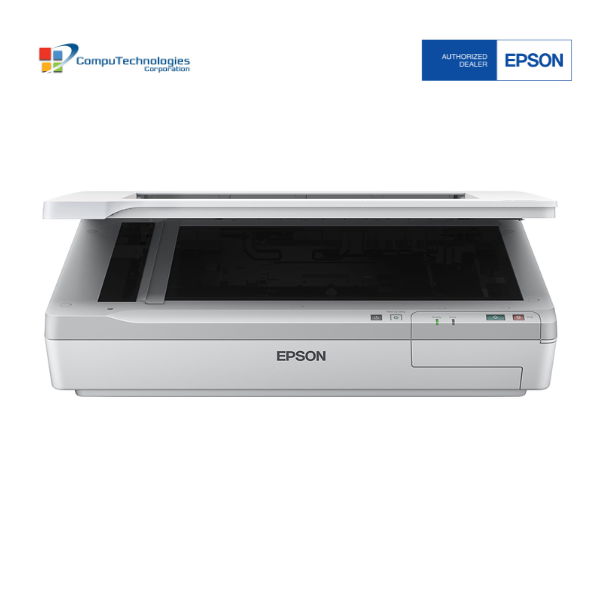

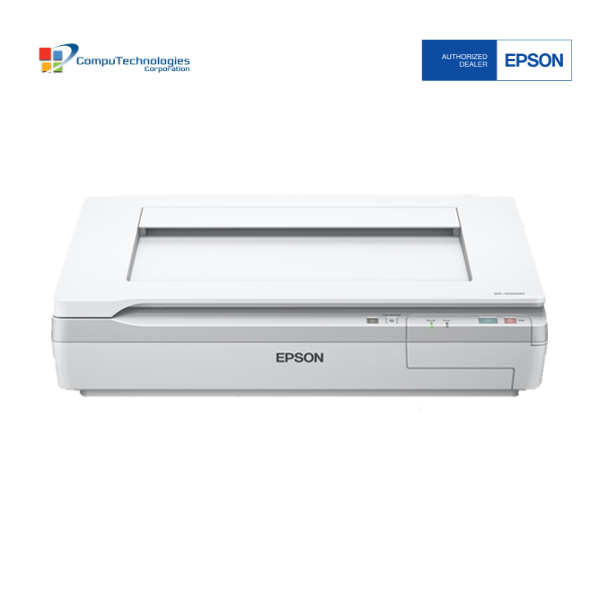

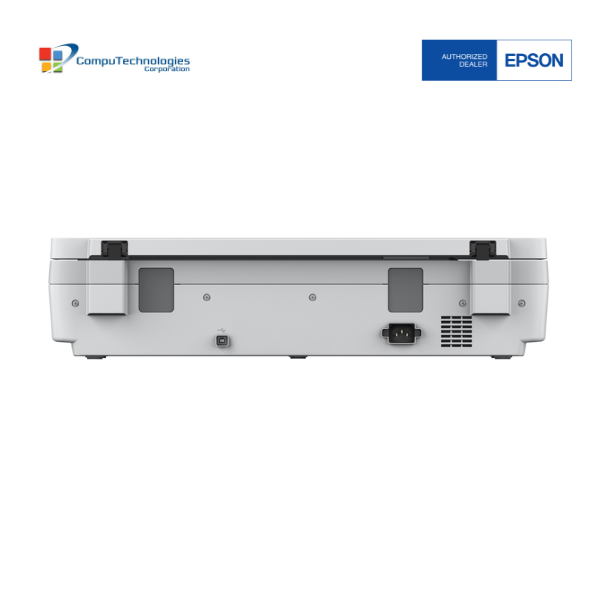

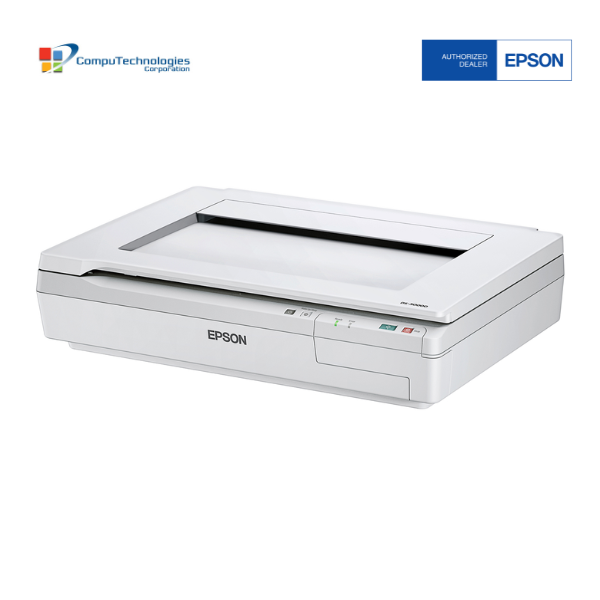

Epson WorkForce DS-50000 A3 Flatbed Document Scanner

Description

Scanner Type & Technology

• A3 flatbed color document scanner

• Uses 4-line CCD sensor with ReadyScan LED technology (no warm-up time)

• Ideal for scanning oversized, fragile, or bound materials such as books, passports, or maps

Resolution & Image Quality

• Optical resolution: 600 × 600 dpi

• Output resolution: 50 to 4,800 dpi (selectable in 1 dpi increments)

• Color depth:

  • Input: 48-bit

  • Output: 24-bit

• Grayscale:

  • Input: 16-bit

  • Output: 8-bit

• Black and White:

  • Input: 16-bit

  • Output: 1-bit

Scan Speed

• Flatbed (A3 size):

  • 300 dpi: approx. 4 seconds (color and mono)

  • 600 dpi: approx. 6 seconds (color), approx. 10 seconds (mono)

Document Size & Media Handling

• Maximum scan size: A3 (297 × 420 mm)

• Minimum scan size: Varies depending on software and driver

• Handles thick, fragile, and irregular documents including bound materials

• No Automatic Document Feeder (ADF); optional network interface available

Supported File Formats

• JPEG

• TIFF / Multi-TIFF

• PDF / Searchable PDF / Secure PDF

• BMP

• PNG

• Microsoft Office formats (DOCX, XLSX, PPTX)

Software & Features

• Includes Epson Scan 2 and Document Capture Pro

• Key features:

  • OCR for searchable and editable documents

  • Color enhancement and dropout

  • Skew correction and book spine correction

  • Barcode recognition

  • Zonal OCR

  • Batch scanning and folder automation

Connectivity

• Standard: USB 2.0 High-Speed

• Optional: Network Interface Unit for LAN support and scan-to-email/cloud functions

Driver Compatibility

• TWAIN

• WIA

• ISIS

• ICA (Mac)

• SANE (Linux)

Operating System Support

• Windows: XP, 7, 8, 10, 11, and supported Windows Server editions

• macOS: Version 10.6.8 and above

Power & Energy Efficiency

• Power consumption:

  • Operating: approx. 25.5 W

  • Ready: approx. 9.5 W

  • Sleep mode: approx. 1.5 W

  • Power off: approx. 0.5 W

• ENERGY STAR® qualified

• Low energy LED light source

Physical Specifications

• Dimensions (W × D × H): 640 × 468 × 156 mm

• Weight: approx. 14.8 kg

• Noise level: approx. 54.9 dB(A) during operation

Environmental Conditions

• Operating temperature: 5 to 35 °C

• Operating humidity: 10 to 80% RH (non-condensing)

• Storage temperature: –25 to 60 °C

• Storage humidity: 10 to 85% RH
