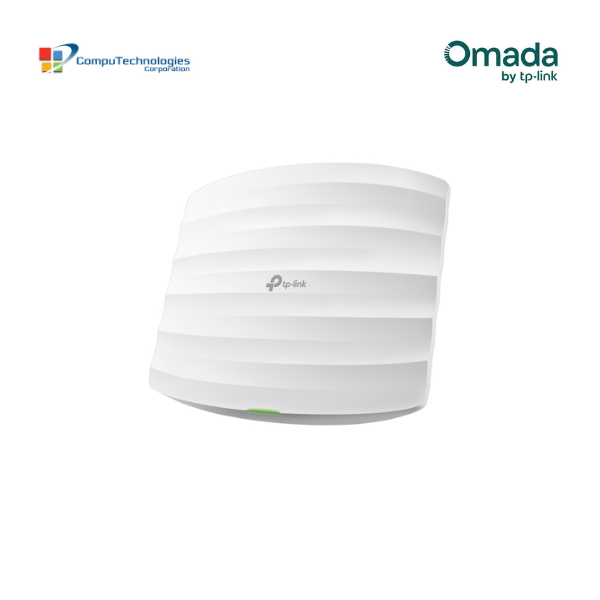

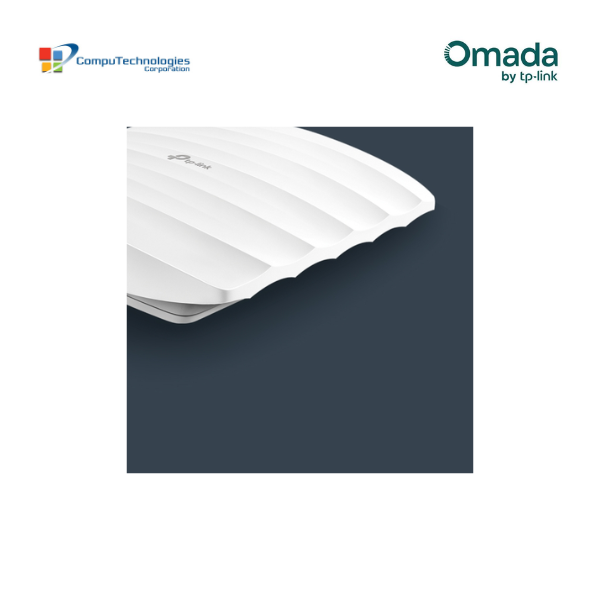

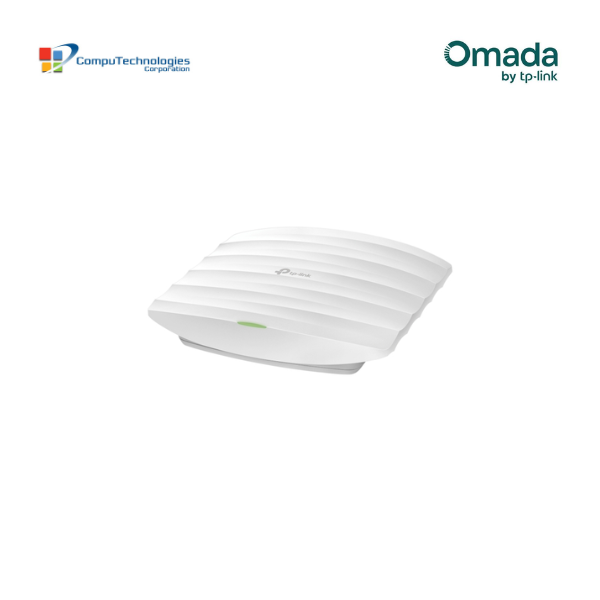

EAP110

Description

Specifications:

Hardware Features

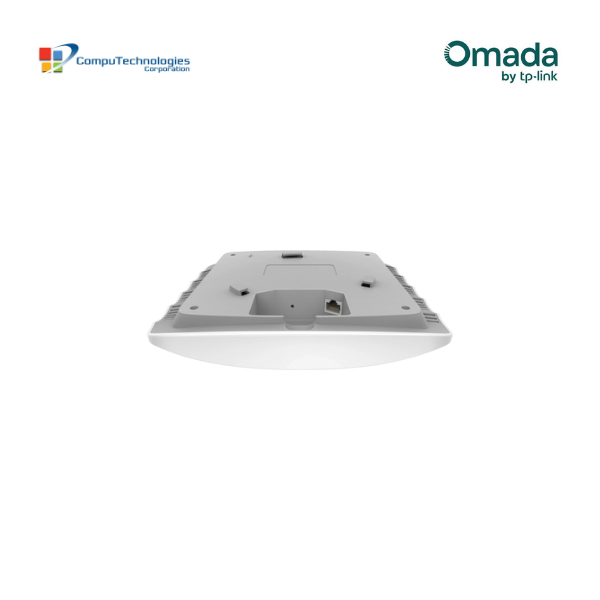

• Interface: 1 × Fast Ethernet (RJ-45) Port with Passive PoE Support
• Button: Reset
• Power Supply: 24V Passive PoE (+4,5 pins; -7,8 pins), PoE Adapter Included
• Maximum Power Consumption: 2.8 W
• Dimensions: 189.5 × 170.5 × 29.7 mm (7.5 × 6.7 × 1.2 in)
• Antenna: Internal 2 × 4 dBi Omni-directional Antennas
• Mounting: Ceiling or Wall Mount (Mounting Kit Included)

Wireless Features

• Coverage Area: Up to 60 m² (650 ft²)
• Concurrent Clients: Supports 100+ Connected Devices
• Wireless Standards: IEEE 802.11b/g/n
• Frequency: 2.4 – 2.4835 GHz
• Maximum Wireless Speed:
  • 802.11n: Up to 300 Mbps
  • 802.11g: Up to 54 Mbps
  • 802.11b: Up to 11 Mbps

Reception Sensitivity

• 300 Mbps: -71 dBm @ 10% PER
• 150 Mbps: -75 dBm @ 10% PER
• 54 Mbps: -78 dBm @ 10% PER
• 11 Mbps: -93 dBm @ 8% PER
• 6 Mbps: -92 dBm @ 10% PER
• 1 Mbps: -96 dBm @ 8% PER

Wireless Functions

• Supports up to 8 SSIDs
• Enable or Disable Wireless Radio
• Automatic Channel Assignment
• Adjustable Transmit Power (dBm)
• Quality of Service (QoS/WMM)
• Bandwidth Rate Limiting
• Scheduled Reboot
• Wireless Scheduling
• Wireless Statistics by SSID, Access Point, and Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Client Isolation
• SSID-to-VLAN Mapping
• Rogue AP Detection
• IEEE 802.1X Authentication
• 64/128/152-bit WEP Encryption
• WPA/WPA2-Enterprise
• WPA/WPA2-PSK

Transmission Power

• CE: Up to 19 dBm (EIRP)
• FCC: Up to 21 dBm

Management Features

• Omada App Support
• Centralized Management via Omada Hardware Controller or Omada Software Controller
• Cloud Access (through OC300, OC200, or Omada Software Controller)
• Email Alerts
• LED On/Off Control
• Management MAC Access Control
• SNMP v1/v2c
• Local and Remote Syslog
• SSH Management
• HTTP/HTTPS Web-Based Management
• Layer 3 Management
• Multi-site Management
• Management VLAN Support

Certifications

• CE
• FCC
• RoHS

Package Contents

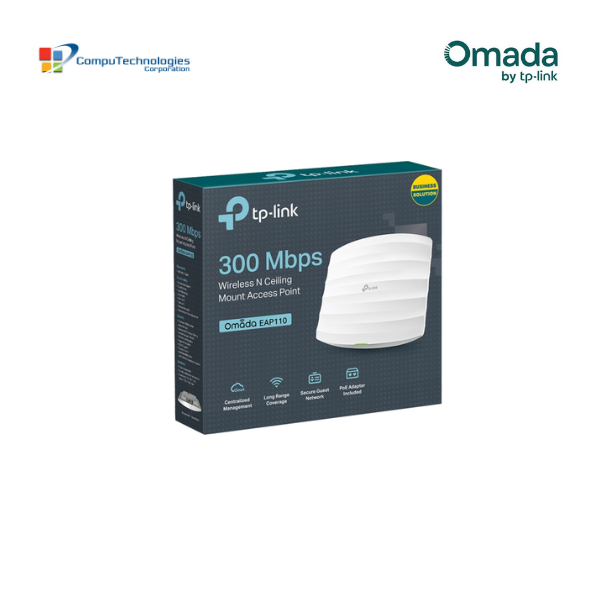

• TP-Link Omada EAP110 300Mbps Wireless N Ceiling Mount Access Point
• Passive PoE Adapter
• Power Cord
• Mounting Kit
• Installation Guide

System Requirements

• Microsoft Windows XP
• Windows Vista
• Windows 7
• Windows 8
• Windows 10
• Windows 11
• Linux
