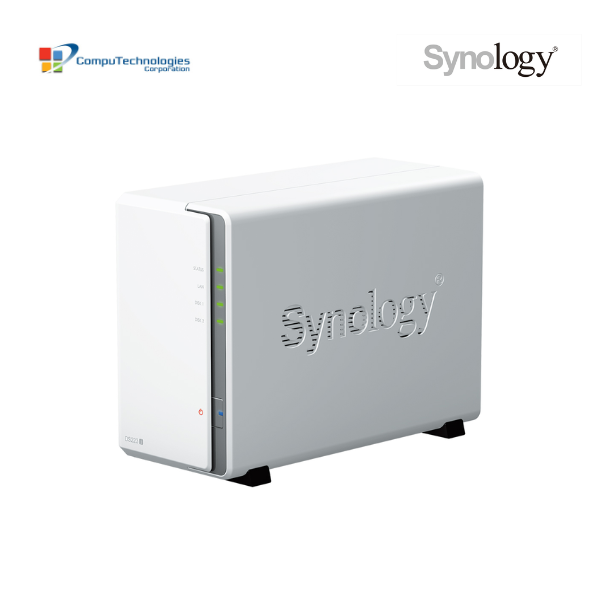

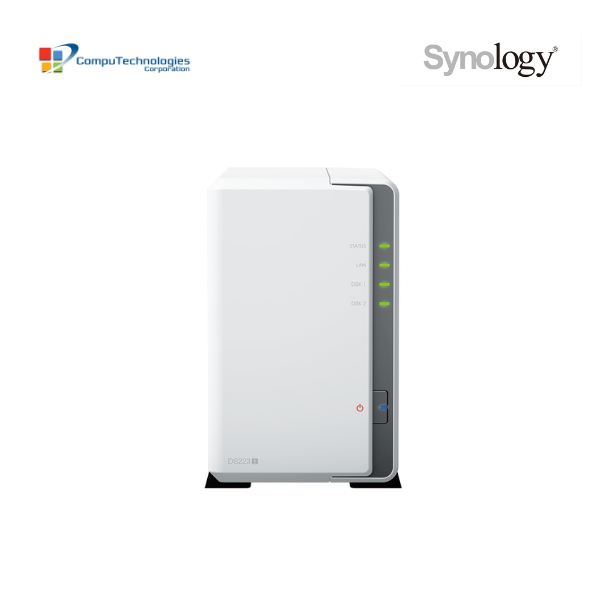

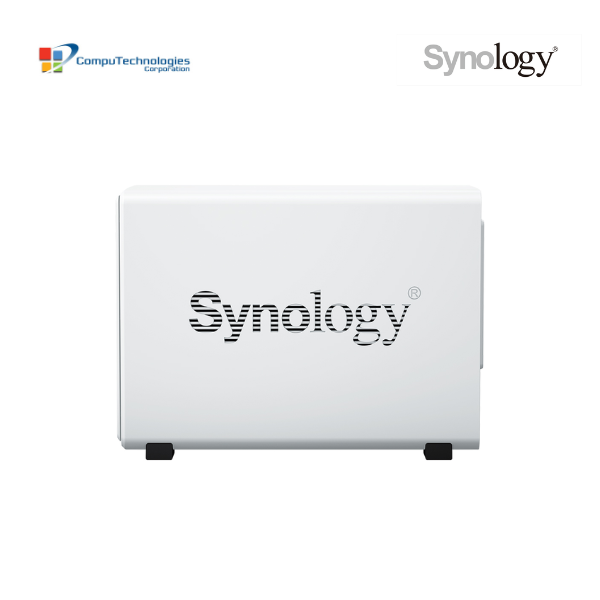

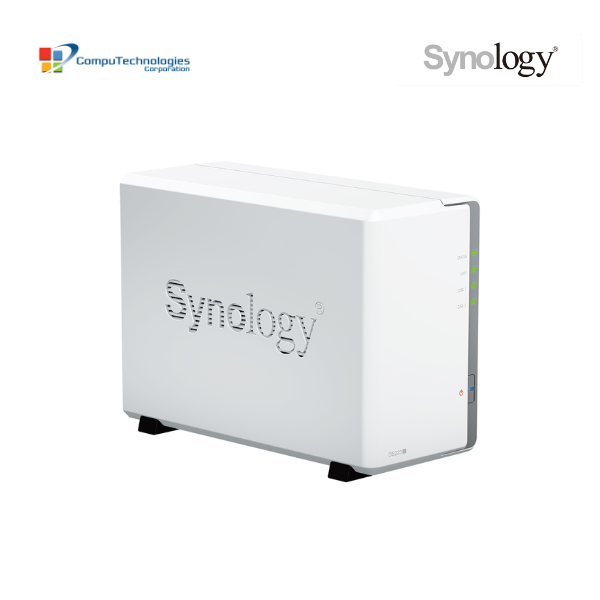

DiskStation DS223j

Description

Processor & Memory

• CPU: Realtek RTD1619B

• Architecture: 64-bit

• Cores: Quad-core

• Clock Speed: 1.7 GHz

• System Memory: 1 GB DDR4 (non-ECC, not expandable)

Storage

• Drive Bays: 2

• Compatible Drive Types:

  • 3.5″ SATA HDD

  • 2.5″ SATA SSD (adapter required)

• Hot-Swap Support: No

• RAID Types: SHR, Basic, JBOD, RAID 0, RAID 1

• Maximum Single Volume Size: 108 TB

• Internal File Systems: Btrfs, EXT4

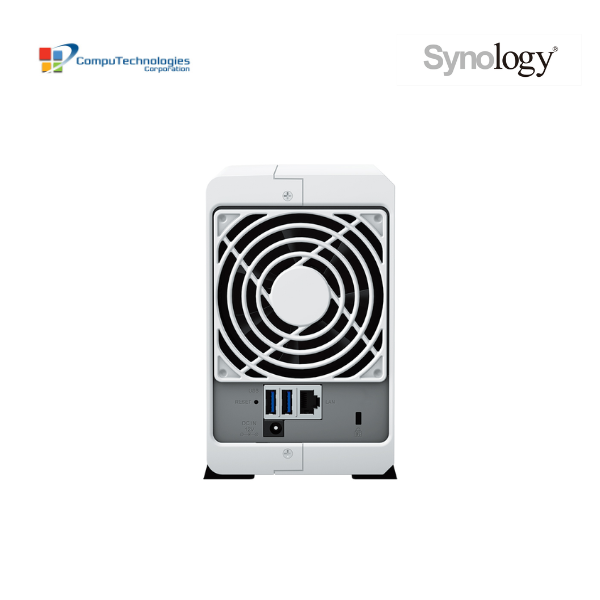

Network & Ports

• LAN: 1 × Gigabit Ethernet (RJ-45)

• USB Ports: 2 × USB 3.2 Gen 1

Physical Specifications

• Dimensions (H × W × D): 165 × 100 × 225.5 mm

• Weight: 0.88 kg

• Cooling Fan: 1 × 92 mm

• Noise Level: 18.2 dB(A)

Power

• Power Supply: External 60 W adapter

• Power Consumption:

  • 16.3 W (Access)

  • 4 W (HDD Hibernation)

Environmental

• Operating Temperature: 0 °C to 40 °C

• Storage Temperature: −20 °C to 60 °C

• Operating Humidity: 8 % to 80 % RH

• Storage Humidity: 5 % to 95 % RH

Software

• Operating System: Synology DiskStation Manager (DSM)

• File Services: SMB, AFP, NFS, FTP, WebDAV, Rsync

• Applications: Synology Drive, Photos, Hyper Backup, Cloud Sync

• Surveillance: Supports Surveillance Station (2 camera licenses included)
