Description
Specifications
-

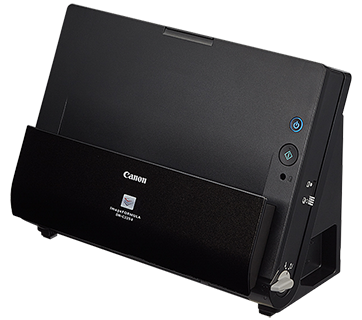

Type: Desktop sheet‑fed document scanner
-
Scanning element: CMOS Contact Image Sensor (CIS)
-
Light source: RGB LED
-
Dimensions (tray closed): ~ 300 × 156 × 220 mm
-
Dimensions (trays open): ~ 300 × 235 × 339 mm
-
Weight: ~ 2.7‑2.8 kg
Scanning Performance
-
Optical resolution: up to 600 dpi
-
Output resolutions: 150, 200, 300, 400, 600 dpi
-
Scanning speed (A4 / Letter, portrait, 200 dpi):
• Simplex: ~25 pages per minute (ppm)
• Duplex: ~50 images per minute (ipm) -
For 300 dpi: duplex in color ~30 ipm; simplex ~15 ppm (color)
Document Handling
-
Supported sizes:
• Plain paper width: 50.8 mm to 216 mm
• Plain paper length: 53.9 mm to 356 mm (long‑document mode up to ~3,000 mm) -
Feed paths: U‑turn path (default) and straight path (for thicker documents or cards)
-
Document thickness / weight:
• U‑turn path: ~52‑128 g/m² (0.06‑0.15 mm)
• Straight path: ~40‑209 g/m² (0.05‑0.25 mm) -
Cards supported: business cards, plastic/embossed cards (ISO size), cards up to ~0.76 mm (thickness)
-
ADF (Automatic Document Feeder) capacity: ~30 sheets (80 g/m²)
Features
-
Duplex scanning (scans both sides in one pass)
-
Ultrasonic double‑feed detection (stops & alerts on misfeeds)
-
Full Auto Mode (automatically adjusts settings like color, resolution, orientation)
-
Supports folio scanning, long documents, cards with straight path mode
-
Image‐processing modes:
• Black & White
• Error Diffusion
• Advanced Text Enhancement I & II
• Grayscale (256 levels)
• 24‑bit Colour
Power, Connectivity & Others
-
Interface: USB 2.0 (High Speed)
-
Power requirements: AC 100‑240 V, 50/60 Hz
-
Power consumption:
• Scanning: ~12.7‑12.8 W
• Sleep mode: ~1.7‑1.8 W
• Off: ~0.5 W -
Operating environment: temperature 10‑32.5 °C; humidity 20‑80% RH
Suggested Usage
-
Suggested daily scan volume: ~1,500 scans/day
