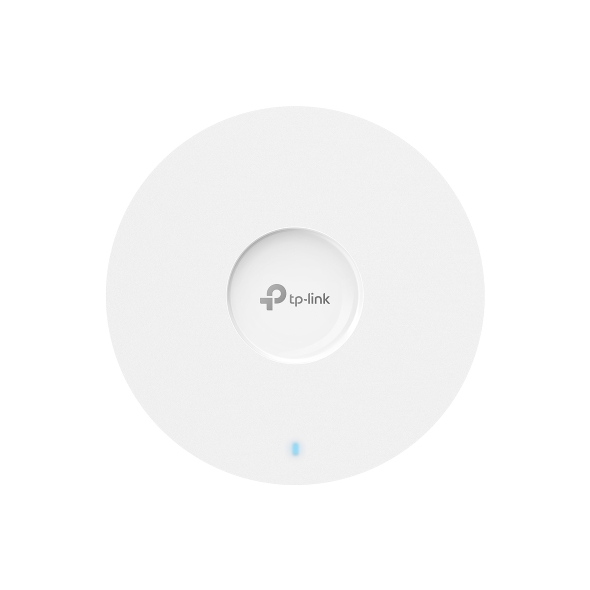

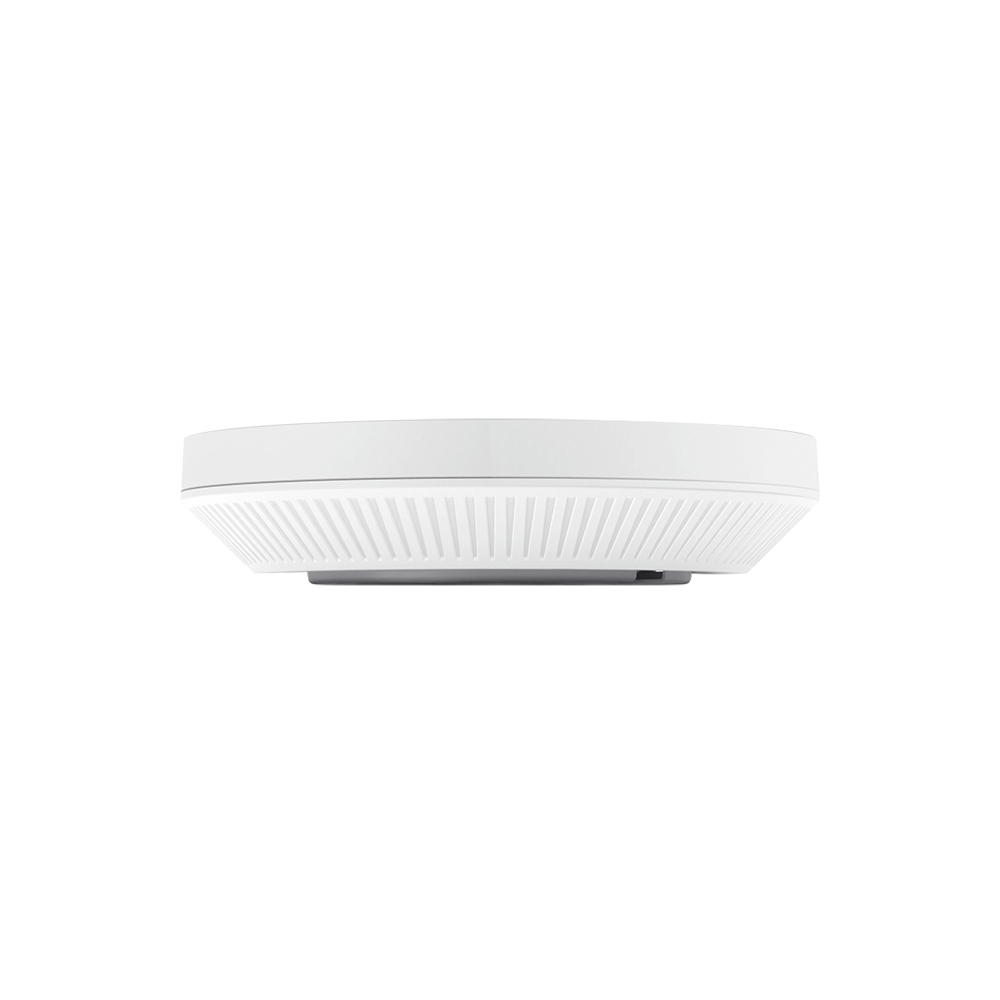

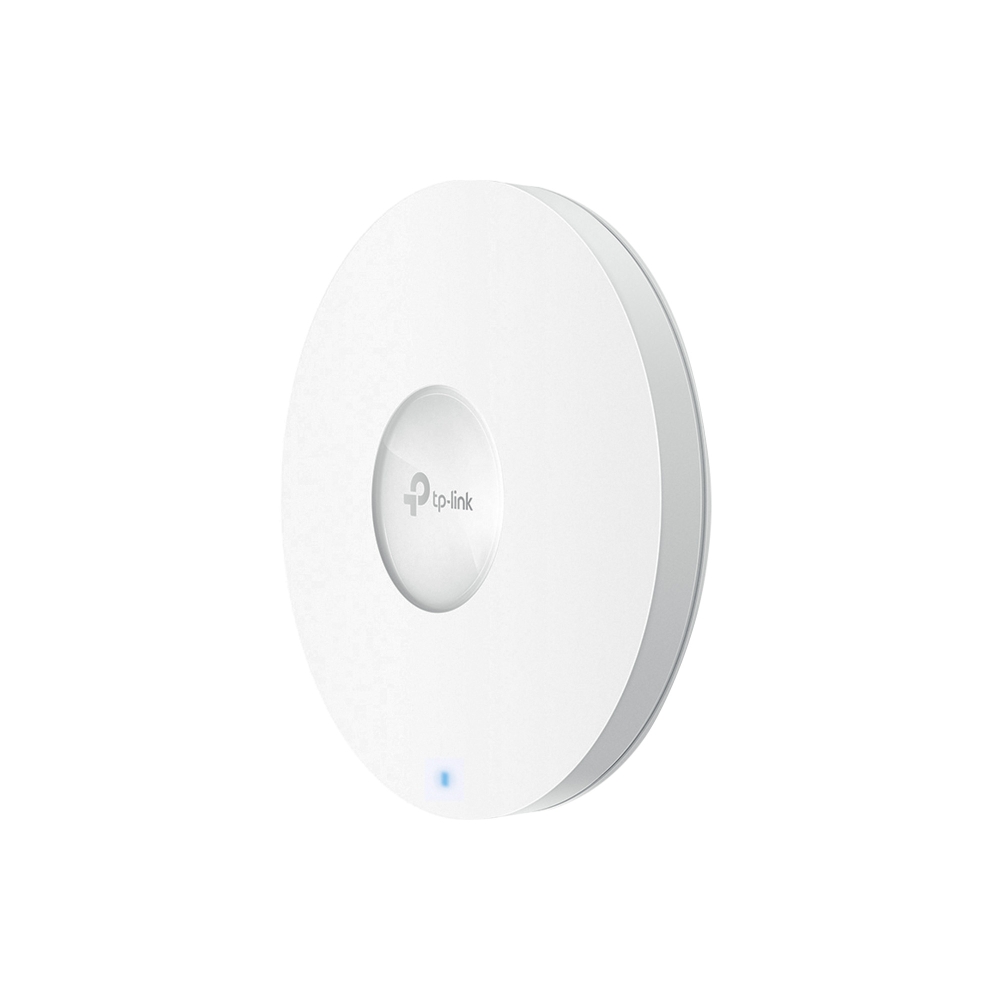

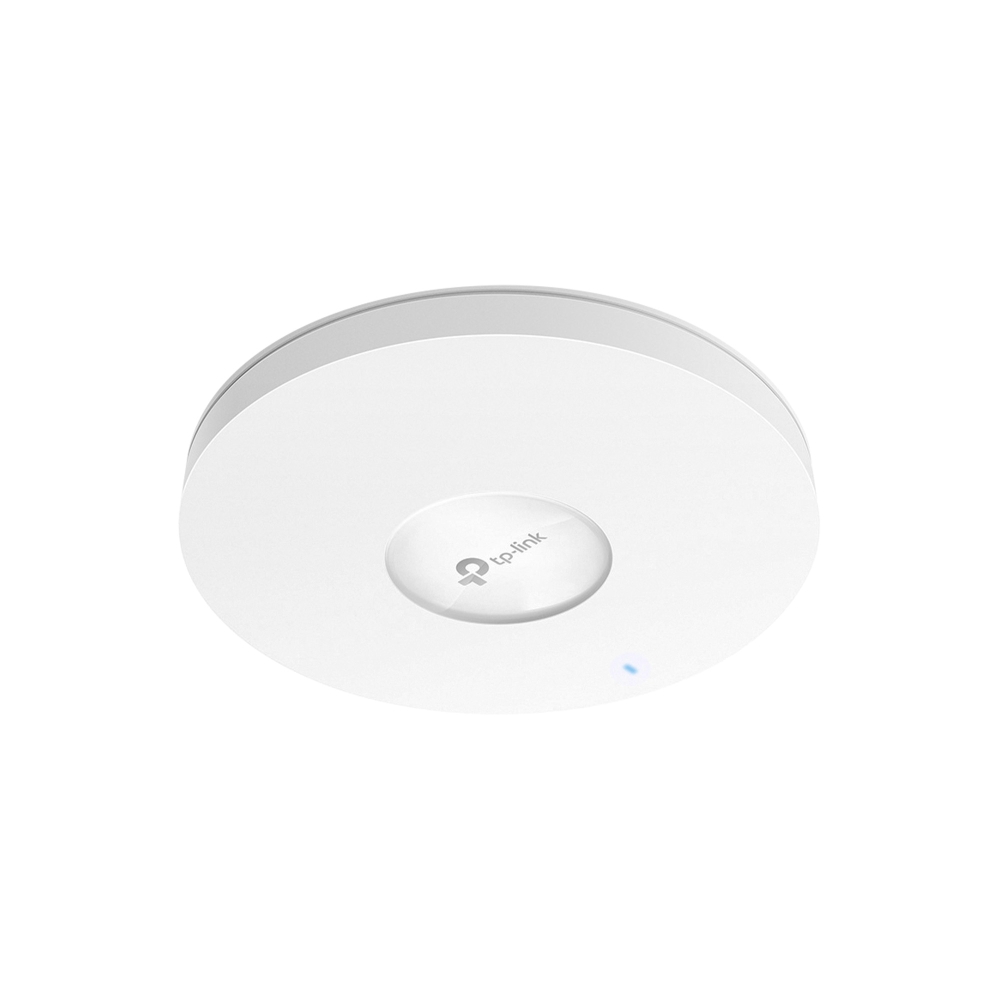

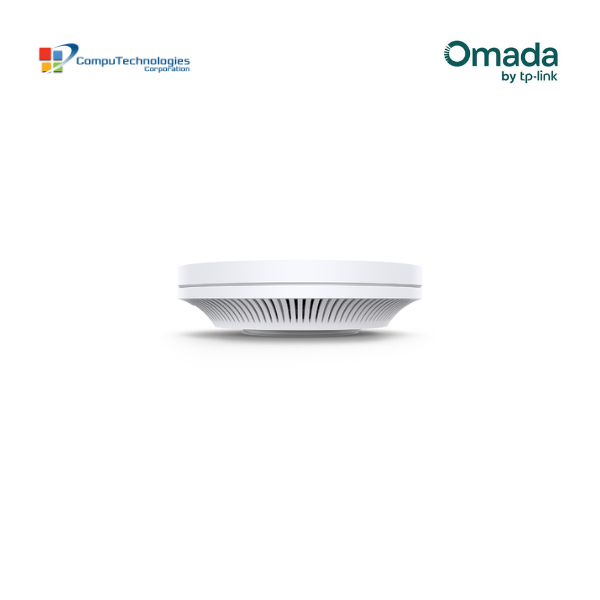

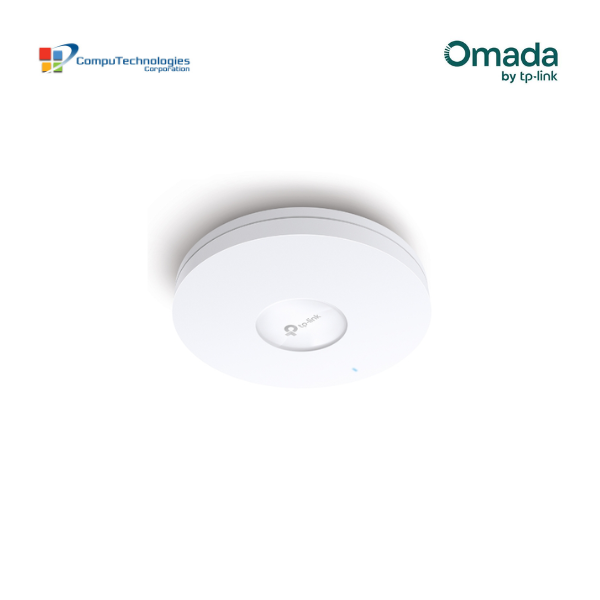

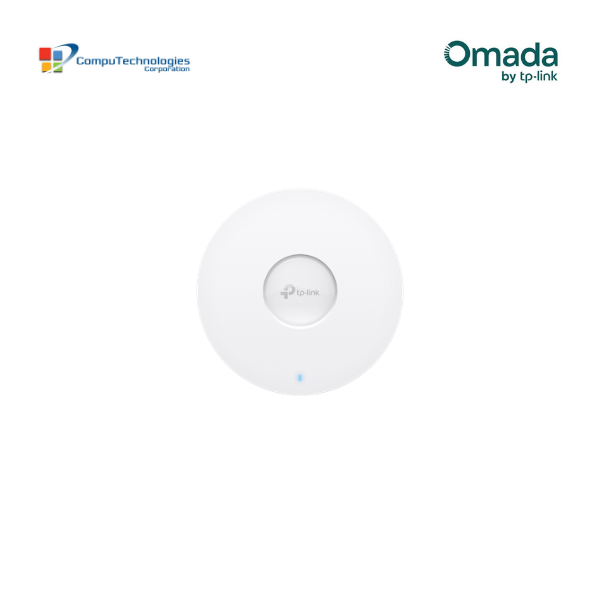

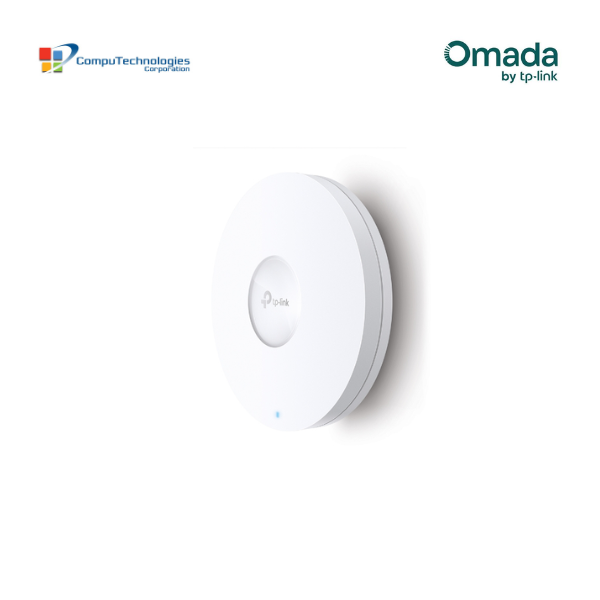

AX1800 Ceiling Mount WiFi 6 Access Point
EAP620 HD

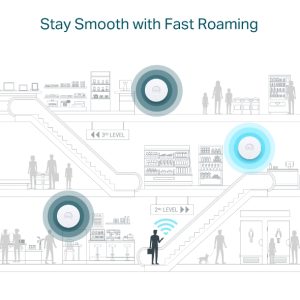

Ultra-Fast WiFi 6 Speeds : Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.† High-Density Connectivity : 4× increased capacity to connect more devices simultaneously.‡ Integrated into Omada SDN : Zero-Touch Provisioning (ZTP)§ Centralized Management : Cloud access and Omada app for ultra convenience and easy management.Ultra-Slim Design : Φ6.3 in. × 1.3 in. elegant design brings more agility.Seamless Roaming : Even video streams and voice calls are unaffected as users move between locations.△ Omada Mesh : Enables wireless connectivity between access points for extended range and flexible deployment.△ PoE+ Powered : Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.Secure Guest Network : Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.△
Description

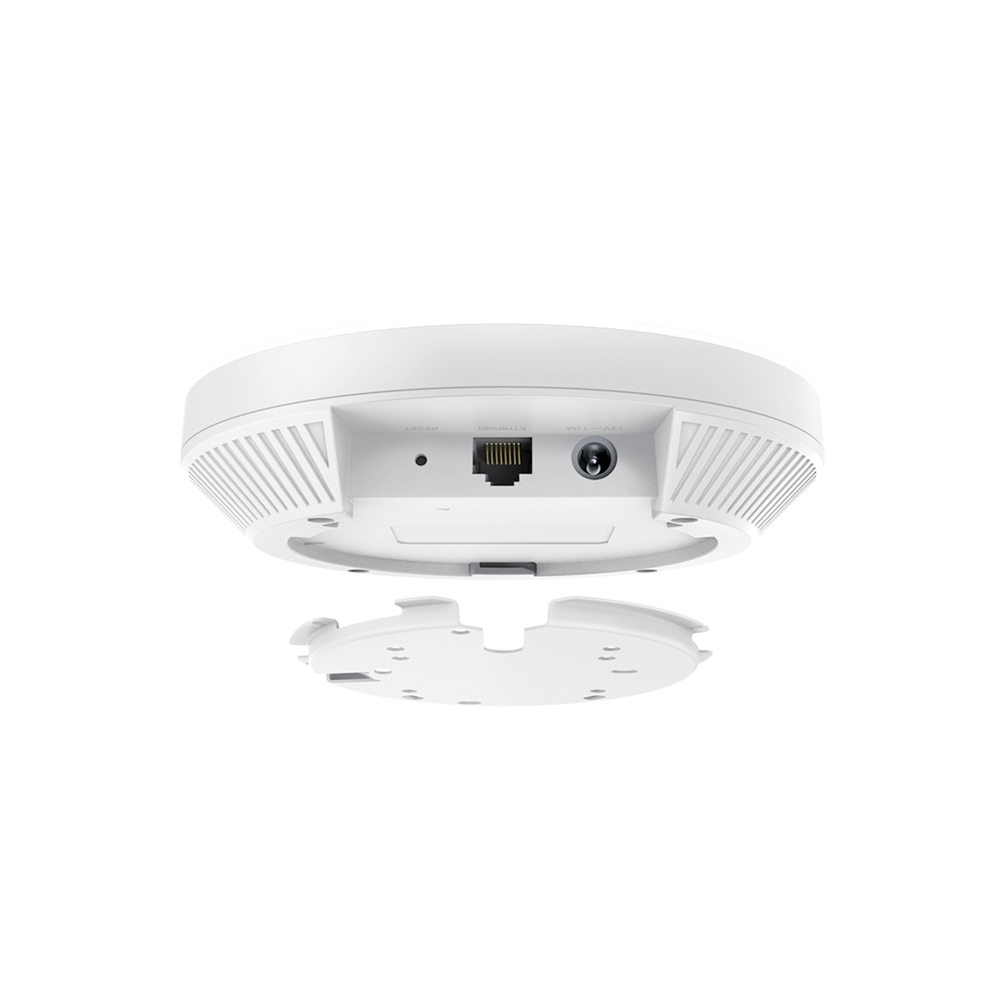

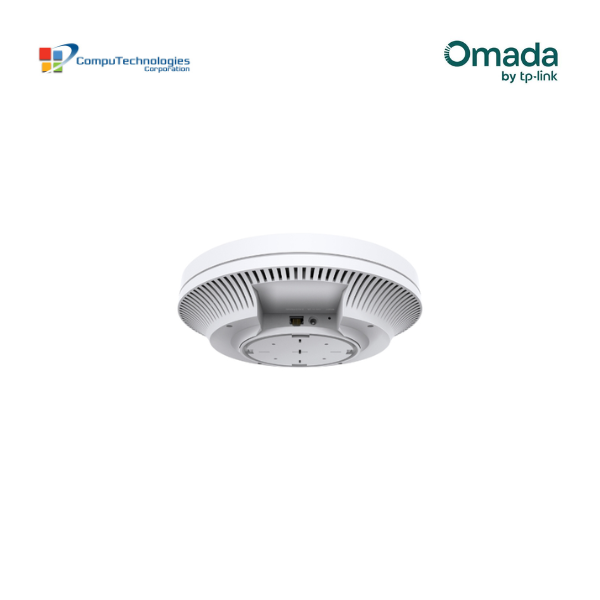

Network Interface
1 × Gigabit Ethernet Port
Reset Button
Power
Supports IEEE 802.3af PoE, 48V Passive PoE, or 12V/1A DC Adapter (included)
Maximum Power Consumption: 10.9W (PoE) / 9.9W (DC)
Wireless
Dual-Band Wi-Fi 6 (IEEE 802.11ax)
2.4 GHz: Up to 574 Mbps
5 GHz: Up to 1,201 Mbps
Supports OFDMA, MU-MIMO, Beamforming, Band Steering, and Seamless Roaming
Coverage: Up to 115 m² (1,250 ft²)
Supports 250+ concurrent client devices
Antenna
Internal Omni Antennas
2 × 4 dBi (2.4 GHz)
2 × 5 dBi (5 GHz)
Management
Omada SDN Cloud Management
Omada App Support
Web-Based Management (HTTP/HTTPS)
SNMP v1/v2c/v3, SSH, Syslog, VLAN Management, Zero-Touch Provisioning
Security
WPA/WPA2/WPA3 Personal & Enterprise
802.1X Authentication
Captive Portal, MAC Filtering, Rogue AP Detection, Client Isolation
Installation

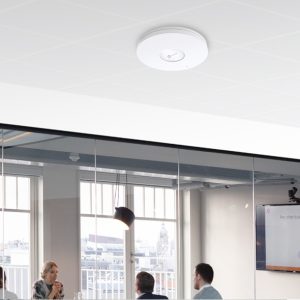

Ceiling, Wall, or Junction Box Mounting (Mounting Kits Included)
Physical
Dimensions: 160 × 160 × 33.6 mm
Package Contents
EAP610 Access Point
Power Adapter
Mounting Kits
Installation Guide
Certifications Operating Environment
Operating Temperature: 0°C to 40°C
Operating Humidity: 10%–90% RH (Non-condensing)
