Archer NX200

Description

Cellular Network

• Network Type: 5G NR, backward compatible with 4G LTE and 3G

• SIM Card Type: Nano SIM

• Maximum 5G Speed:

  • Download: Up to 4.67 Gbps

  • Upload: Up to 1.25 Gbps

• Failover Support: Automatic switching between 5G and wired WAN

Wireless Specifications

• Wi-Fi Standard: Wi-Fi 6 (IEEE 802.11ax)

• Frequency Bands: Dual-Band (2.4 GHz & 5 GHz)

• Wireless Speed (AX1800):

  • 5 GHz: Up to 1201 Mbps

  • 2.4 GHz: Up to 574 Mbps

• Wireless Technologies:

  • OFDMA

  • MU-MIMO

  • 1024-QAM

  • Beamforming

• Mesh Support: EasyMesh compatible

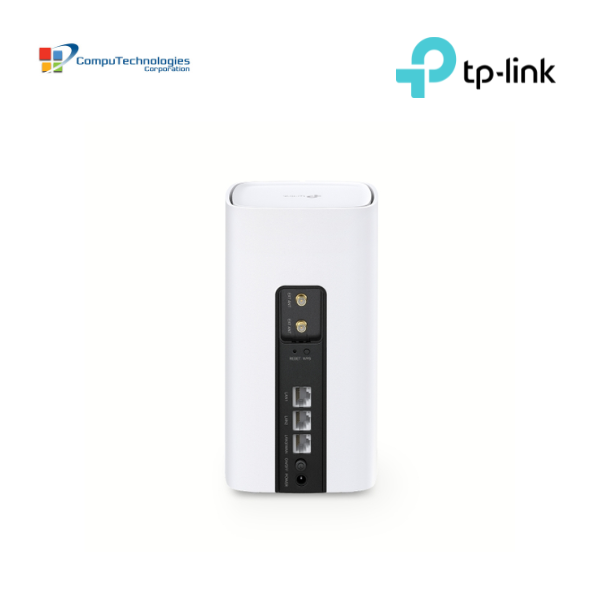

Ports & Hardware

• Ethernet Ports:

  • 1 × Gigabit WAN/LAN (auto-sensing)

  • 2 × Gigabit LAN

• Antennas:

  • Internal high-gain cellular antennas

  • Internal Wi-Fi antennas

  • 2 × external SMA-F antenna connectors

• Buttons: Power On/Off, Wi-Fi On/Off, WPS, Reset

• Power Supply: 12 V / 2 A external adapter

Security

• Wireless Encryption: WPA3, WPA2, WPA

• Firewall Protection: IPv4 SPI firewall, IPv6 firewall, DoS protection

• Guest Network: Separate guest networks for 2.4 GHz and 5 GHz

• Access Control: Parental controls, MAC/IP filtering

Software & Management

• Web-based management interface

• Mobile app management support

• Quality of Service (QoS)

• IPv4 and IPv6 support

• VPN Support (PPTP, IPSec, OpenVPN)

• DHCP server, address reservation

• Port forwarding, UPnP, DMZ

Physical & Environmental

• Dimensions (W × D × H): 99 × 99 × 190 mm

• Operating Temperature: 0 °C – 40 °C

• Storage Temperature: −40 °C – 70 °C

• Operating Humidity: 10 % – 90 % (non-condensing)

• Storage Humidity: 5 % – 90 % (non-condensing)

Package Contents

• Archer NX200 5G AX1800 Wireless Dual-Band Gigabit Router

• Power Adapter

• Ethernet Cable

• Quick Installation Guide
