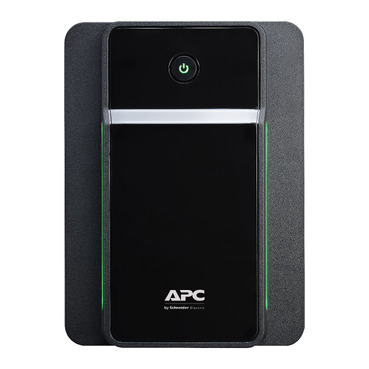

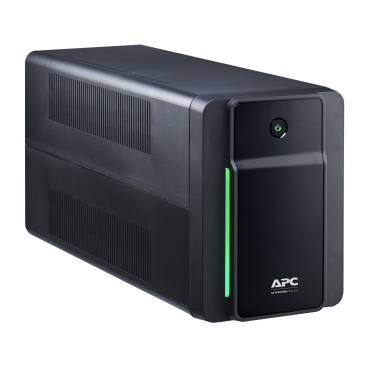

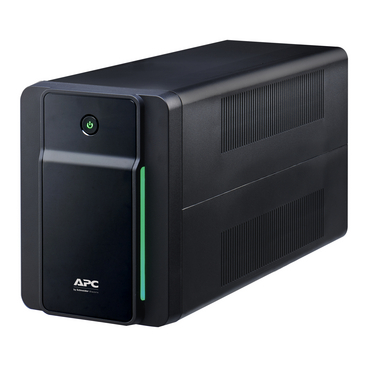

APC Back-UPS 2200VA, 230V, AVR, 4 universal outlets

Description

General Specifications:

• Model: APC Back-UPS 2200VA

• Part Number: Typically BX2200MI or BX2200LI-MS (depending on region)

• Form Factor: Tower

• Waveform Type: Stepped approximation to a sine wave

• Topology: Line-Interactive

• Automatic Voltage Regulation (AVR): Yes (Boost and Trim)

Electrical Characteristics:

• Input Voltage Range: 170 – 280V

• Input Frequency: 50/60 Hz ±1 Hz (auto-sensing)

• Input Connection Type: IEC C14 or hardwired depending on version

• Nominal Output Voltage: 230V

• Output Power Capacity:

  • 2200VA / 1200W

Outlets:

• Total Outlets: 4

• Outlet Type: Universal sockets (compatible with multiple plug types)

• Battery Backup & Surge Protection: All 4 outlets

Battery Information:

• Battery Type: Sealed lead-acid maintenance-free battery (VRLA)

• Typical Recharge Time: 8 hours

• User-replaceable Battery: Yes

• Battery Backup Time (Typical):

  • Full Load (1200W): ~2-3 minutes

  • Half Load (600W): ~9-12 minutes

Surge Protection:

• Surge Energy Rating: 273 Joules

• Data Line Protection: No (some versions may include it)

Indicators & Alarms:

• LED Indicators: Power On, Replace Battery, Overload

• Audible Alarms: Battery mode, Low battery, Overload

Environmental:

• Operating Temperature: 0 – 40°C

• Relative Humidity: 0 – 95% non-condensing

• Noise Level: < 45 dB

Physical Characteristics:

• Dimensions (HxWxD): Approx. 22 x 13 x 35 cm (may vary slightly)

• Weight: Approx. 12.5 – 15.5 kg
